Tracer/ST Model 223 Standalone Automatic 3.5″ Floppy Diskette Duplicator

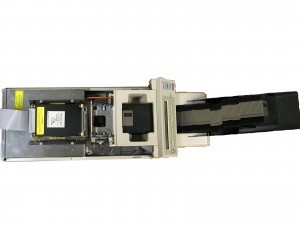

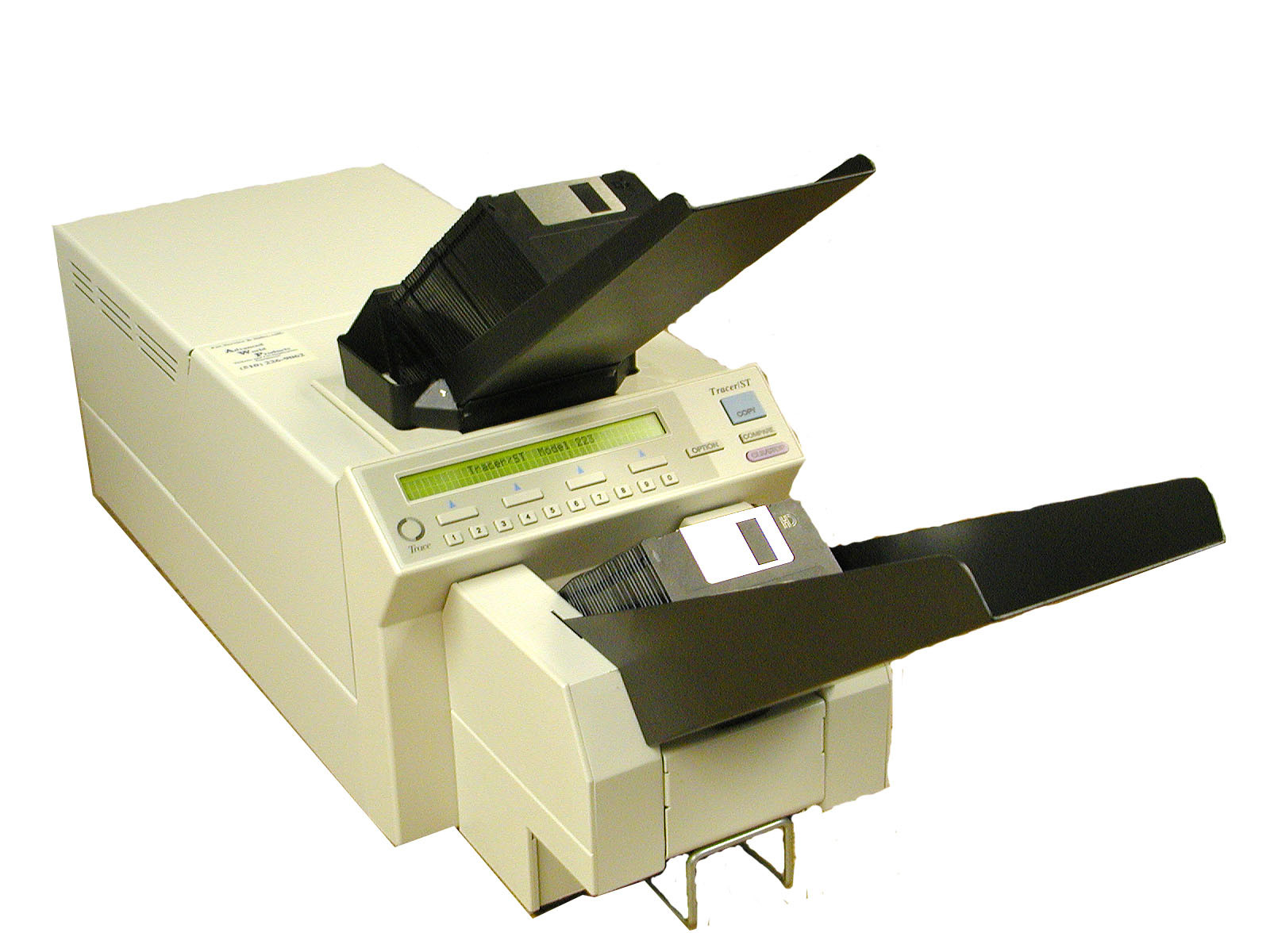

Tracer/ST 3.5 Inch Disk Duplicator Tracer/ST 3.5 Inch Disk DuplicatorPictured is the Tracer/ST standalone disk duplicator which copies 100 disks unattended at the rate of 160 disks per hour. Nothing on the market compares to the ST when it comes to quality, price and performance (over 70% of all commercially produced disk are done on Trace Mountain duplication equipment). If you want the most reliable and best duplicator ever manufactured, then the Tracer/ST is for you.

Tracer/ST 223 Features

•Supports all formats automatically including Mac 800k, IBM 720K, Mac/IBM 1.44Mb, DMF 1.68Mb, NEC, Atari, Unix, Xenix, J-3100.

•Copies 135-160 disks per hour

•Bit-by-bit verification ensures perfect copies every time.

•Absolute Window Margin (AWM) and Dropout Testing ensures interchange readability across the widest range of PC Drives.

•AAD (Analog Alignment Disk) testing built-in. Tests Radial Alignment, Azimuth, Index-to-data and Amplitude.
•Electronic counters notify operator when to clean drive and autoloader.

•Built-in Drive Cleaning and Loader cleaning makes maintenance simple.

•Electronic life counters keep track of disk insertions for the drive and loader. Even if you move the drive to another system.

•Optional hard drive for on-line storage of masters.

•One button operation. Press “COPY” twice and you can duplicate any format automatically.

•Master Read-In Analysis.

•Assured Image Integrity (AII).

•The best warranty in the industry. 1 Year system. 1 Year or 20,000 copies on drive, whichever occurs first.

•The best and most reliable autoloader ever manufactured. Over 70% of all disks are duplicated on Trace equipment.

Top Reasons to Invest in a Tracer/ST 3.5″ Disk Duplicator

1.) Easy Maintenance. Our equipment has electronic counters in the drive and in the loader (Stored in EEPROMS). The maintenance counter prompts you when to perform drive and loader maintenance, and the life counter keeps track of how many copies have been made on the drive and on the loader. Move the drive to another loader and the count stays with the drive. This promotes drive life because at anytime you can see how many copies have been made since the last cleaning.

2.) Our duplication drives last longer. Because we are using a 2X base drive with our own electronics, we can completely optimize all of the parameters of the drive and continue to do so, automatically, even during duplication using Auto-Asymmetry. Every 2,500 disks the ST will automatically adjust for head wear giving you the optimum in recording and pro-long the life of the heads.

To do asymmetry on a 2XSDS drive from a competitor, you’ll need a minimum of $3,000 worth of specialized disk test equipment.

We also have counters that notify the user when to clean the drive. Proper and timely cleaning of heads will significantly increase drive life.
This translates into an average of 80,000 copies per drive, and a well maintained drive can last well over 200,000 copies.

3.) The best duplicated disk possible. Not only does an ST do bit-by-bit verification, the ST also measure Amplitude (signal) and Window Margin (bit placement).
In other words, even if a disk verifies bit-for-bit (competitors equipment), it could still fail on the Tracer/ST because we measure Amplitude and Window Margin during the duplication process. If either of these adjustable parameters is not met, then we will fail the disk. This means you will get a duplicated disk that has the best chance possible of being read on any drive in the field, even if that drive is out of alignment, has electrical and/or mechanical problems.

4.) When a Tracer/ST fails a disk, it tells you exactly why it fails the disk where competitors equipment does not. This is extremely valuable in maintaining and troubleshooting the equipment.

For example, say you are duplicating 1,000 disks and after 500 copies you are starting to get a high reject rate 10%+. Why is it rejecting disks? Competitors equipment will tell you the disk is bad. But that is not very helpful in trying to figure out why they are failing and how to resolve the problem.

Is it the drive? Is it the media? The Tracer/ST will give you the reason for failure which identifies why the disk is failing. For example, if the disks were all failing with:

Margin = Drive heads are wearing out and need to be replaced.
Dropout = Usually indicates media is the problem. Could also be drive or combination.
Compare = Almost always means media is the problem or drive is completely worn out.
WR Prot = Disks are write protected (WR Protect can be enabled, disabled or inverted in Options menu)
1MB = HD disk sensor is bad and needs to be replaced.

5.) Need your production equipment to be tested & calibrated for ISO certification? We support the Analog Alignment Disk (AAD, $65) which will allow you to test your duplication drive for Alignment, Azimuth, Index-to-data, and TAA. Simply place the AAD disk in the loader and press -OPTION- -UTILS- -TEST- -DRIVE- and the ST will give you a pass/fail for each parameter. With the ST 6000, you have all the tools built-in to do all adjustments necessary to bring a drive back into spec. You can even do your own base drive replacements with an ST 6000.

6.) Our warranty is the best in the business. All loader parts & electronics is 1 year. Drive warranty is 1 Year or 20,000 copies, whichever comes first. Most if not all other manufactures warranty that the drive works upon receipt only.

7.) Advanced World Products services and supports all equipment sold and we won’t refer you to someone else to take care of any questions or problems as we have 2 full-time technicians that repair and support this product. That means 95% of the time when you call with a question someone will be available to take your call and answer your questions. And we’ve been in business 19 years selling and servicing Trace Mountain Disk Duplication Equipment. During this time we’ve sold more than 1,000 Trace Mountain Autoloaders and have never had one returned.

8.) Need to replace your current disk duplicator because it no longer works and/or you can no longer get support? We will give you a $500 trade-in towards the purchase of a Tracer/ST 223 or 6000.

9.) Extended Service contracts are available and quoted upon request.

10.) Simply the best disk duplicator ever manufactured with over 70% of all disk duplication done on Trace Mountain equipment.

11.) 30 day money back guarantee and the last disk duplicator you will ever need…….Guaranteed.

TRACE DISKETTE DUPLICATION EQUIPMENT PRICE LIST

Updated 12/7/2015 - AWP (510) 226-9062

Refurbished Equipment= Used, Good condition. Worn parts replaced, includes new copy drive.
Also includes on-going service, support, 1 Year Warranty on the system and 1 YR
or 20,000 copies Copy Drive Warranty.

TRACER/ST STANDALONE 3.5″ DISKETTE DUPLICATORS

PRODUCT                                                                  PRICE($)
———————————————————————————
Tracer/ST Model 223R                                              $4,500
-Copies 137/hr 720K/1.44Mb (Refurbished)
-Includes Refurbed Autoloader, New Copy Drive, Hoppers, Power Cord, ST Owner’s Manual, Quick Start Guide

TRACER/ST OPTIONS - ACCESSORIES

540 Mb Hard Disk Drive                                             $595
3.5″ AAD Alignment Disk                                           $75
Loader & Drive Cleaning Kit                                      $35
3.5″ Cleaning Diskette                                                $10

TRACER/ST MANUALS (PDF Download)
Tracer/ST Service Manual - 147 pages ($40)
Tracer/ST 6000 Owner's Manual - 176 pages ($35)
Tracer/ST 223 Owner's Manual - 156 pages ($35)
Tracer/ST 8000 Owner's Manual - 210 pages ($35)
*Refurbished=Worn parts are replaced and comes with a 1 Year warranty for system.
- Copy Drive is NEW.
- Drive Warranty - Electronics = 1 Year.
- Drive Warranty - Mechanical (ie., heads, motor,chucking pin,etc.)= 1 Year or 20,000 copies,
whichever comes first.
- Mechanical Drive Warranty voided by any damage caused by user's media (ie., head ripped off
drive due to bent 3.5" disk shutter, etc.)
- Extended warranties available. Costs depends on level of service.  Call for pricing.



REFURBISHED PC BASED DUPLICATION SYSTEMS
Tracer 3+ Standard System                    $4,200
-Tracer 3+ Autoloader (Refurbished)
-PC Trace Pro Software
-Single Speed 300 RPM Copy Drive
-100 disk input/output capacity
-Drive A: or B: Cable Set
-Duplicates 30+/hr 1.44Mb Disks/hr.
-1 Year Warranty (copy drive = 30 days)
*Refurbished=Worn parts are replaced and comes with a 1 Year warranty for system, 30 days on
copy drive.Drive, software, controller and cables are new.  Extended warranty available on
autoloader for $550 which includes advanced parts/system replacement if problem cannot be resolved via tech support.
ALL REFURBISHED EQUIPMENT IS AVAILABLE ON A FIRST-COME FIRST-SERVED BASIS AND THERE IS NO
GUARANTEE MADE ON AVAILABILITY.  PLEASE CALL FOR CURRENT AVAILABILITY.



PERIPHERALS
DL-3000 Automatic Disk Labeler (Refurbished)    $3,999
-Labels flat or wrap around labels with no
adjustments.  Labels 3,200 disk/hr wrap or flat.
DL3000 User & Service Manual (PDF Download)
DL3000 User/Service Manual (35 pages)		 $25

TRACE REPAIR/PARTS PRICING
Labor Rate:               $100.00/hr.
Trace Drive Tune-up:      $85.00 (includes labor)
Trace Loader Tune-up:     $425.00 (includes labor & basic parts (ie., belt, pulley, rollers,
(Minor Tune-Up)                   O-rings). Major parts (ie., Motors) are additional.
Trace Loader Tune-up:     $895.00 (Sames as Minor + Complete tear down of autoloader to
(Major Tune-Up)                   to remove and clean all diskette transfer roller bearings.)
Trace ST 223/6000
Base Drive Replacement:   $425.00
Trace Loader Refurb
Parts Kit (3.5" Loader)   $325.00 (Includes Orange Drive Belt, 4 Rollers (Tygon Tubing), 8
Bearings, 10 Black O-Rings, 4 Shaft Pulley).
Trace Orange Drive Belt:  $20.00
Base Drive Replacements include:
- Old Base Drive is removed and replaced with a Brand New Base Drive.
- New Base Drive is tuned to the drive electronics board:  Includes optimizing Read/Write
Asymmetry, Window Margin, Index-to-data, Amplitude, and Drive Alignment.
- Drive comes with a Data Test sheet that shows all test parameter values and drive must
pass all tests.  Data Sheet Test Example.
- Drive Life Counter is reset to 0 and then as a final test the drive must duplicate 25
disks without any failures and a maximum of 3 retries total for all 25 copies.
- New Base drive includes a 1 Year or 20,000 Copy Warranty, whichever comes first.

(Applicable shipping, tax and handling are additional to above prices)
RETURN POLICY - DISK DUPLICATION PERIPHERALS MAY BE RETURNED WITHIN 30 DAYS
WITH NO RESTOCKING FEE IF EQUIPMENT DID NOT PERFORM AS ADVERTISED
(IE., DID NOT COPY THE FORMATS YOU NEEDED,  PROBLEMS WITH SYSTEM, ETC.).

EQUIPMENT TO BE RETURNED WITHOUT A VALID REASON WILL BE SUBJECT
TO A 20% RESTOCKING FEE. ALL EQUIPMENT RETURNED SHOULD INCLUDE ALL ORIGINAL
PACKING MATERIALS AND EQUIPMENT SHOULD BE IN SAME CONDITION AS WHEN PURCHASED.

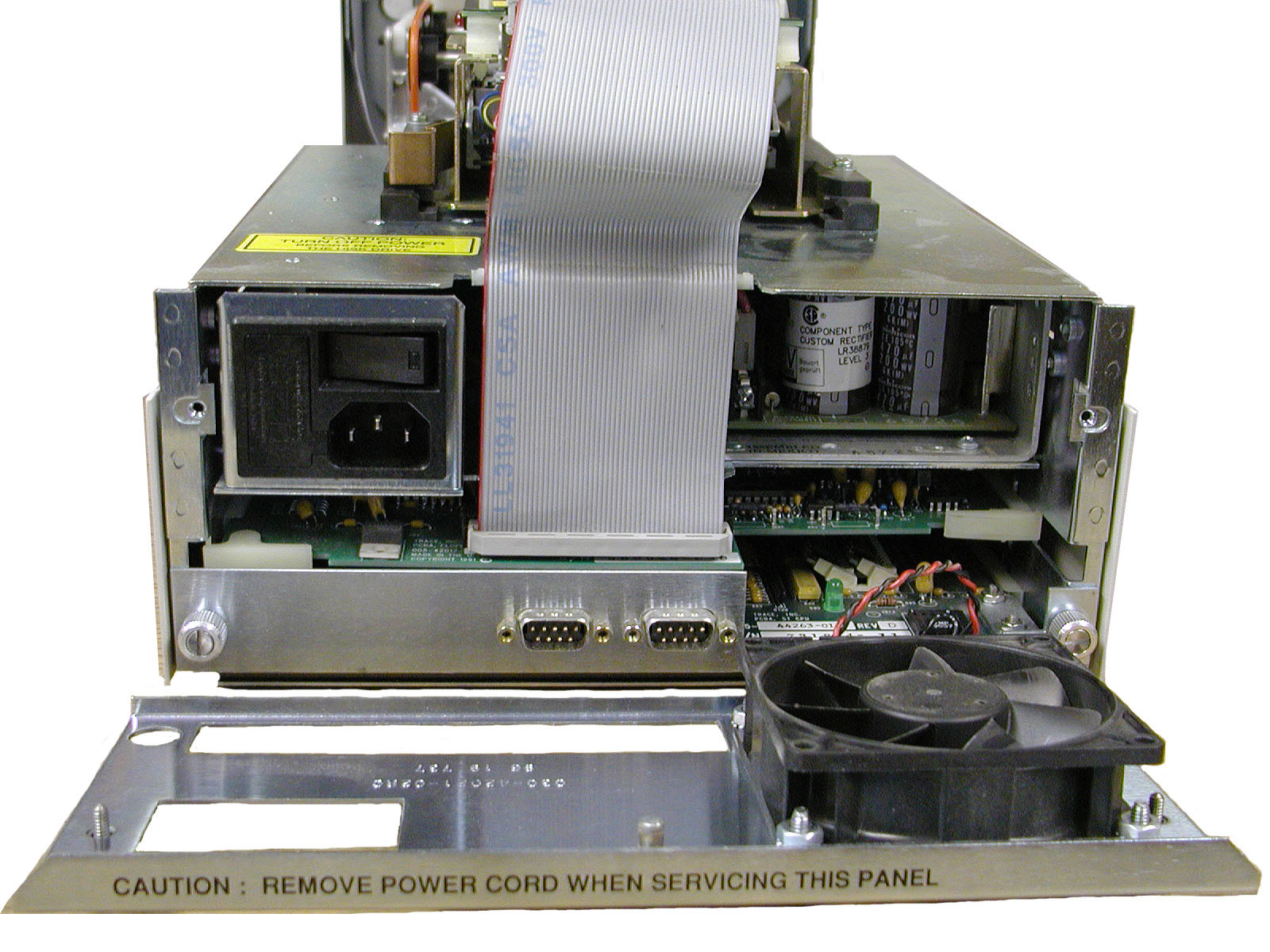

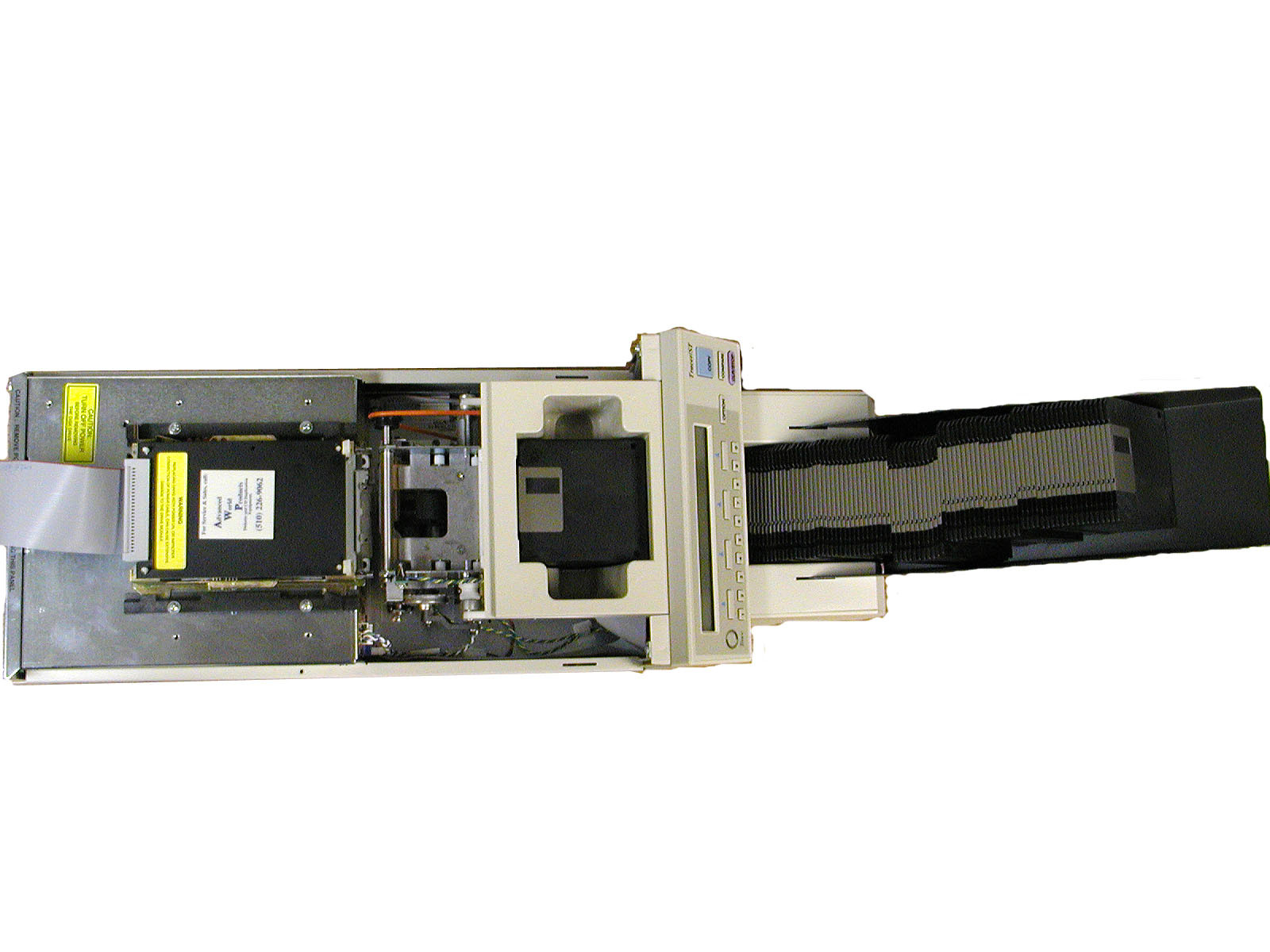

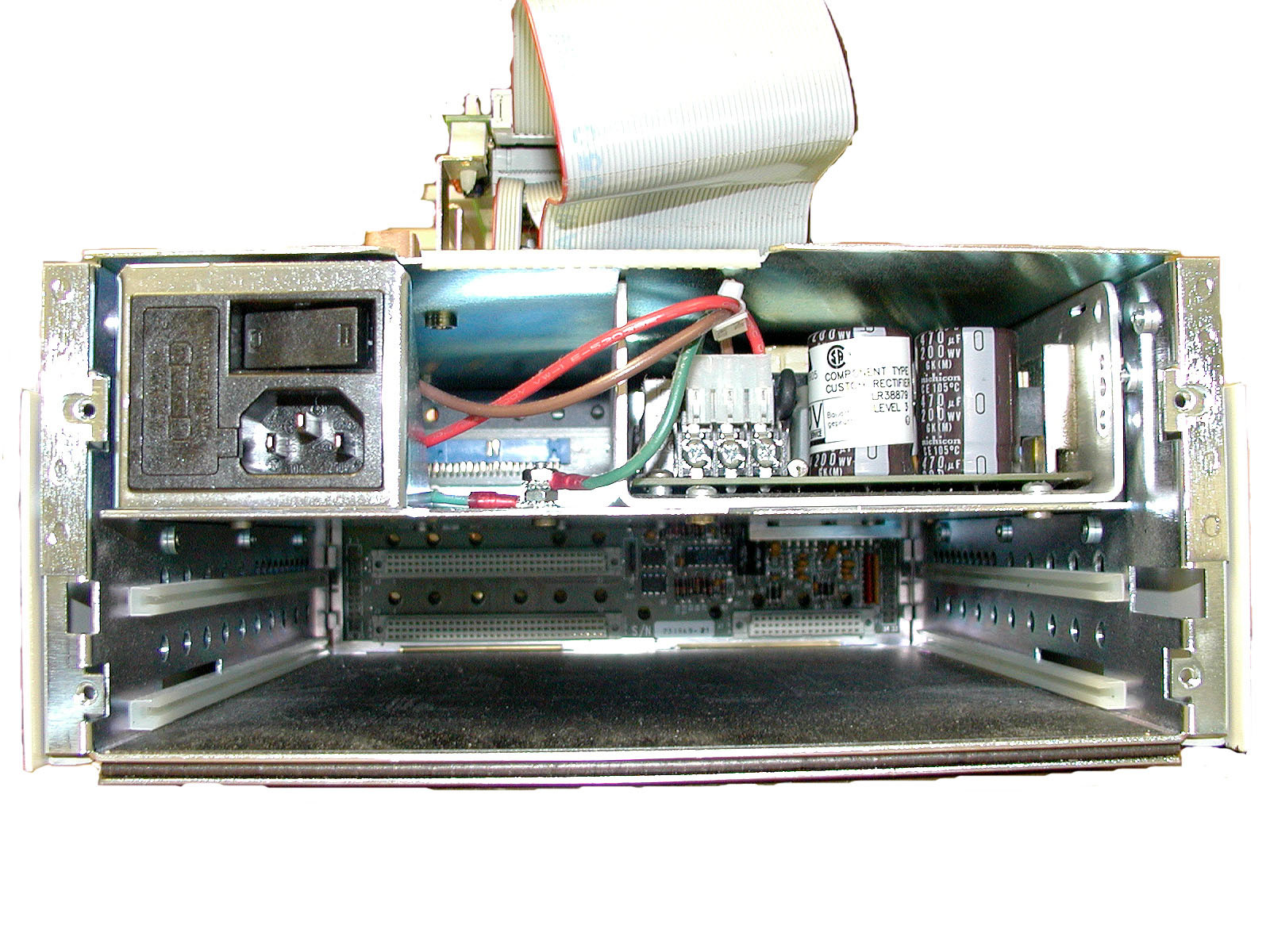

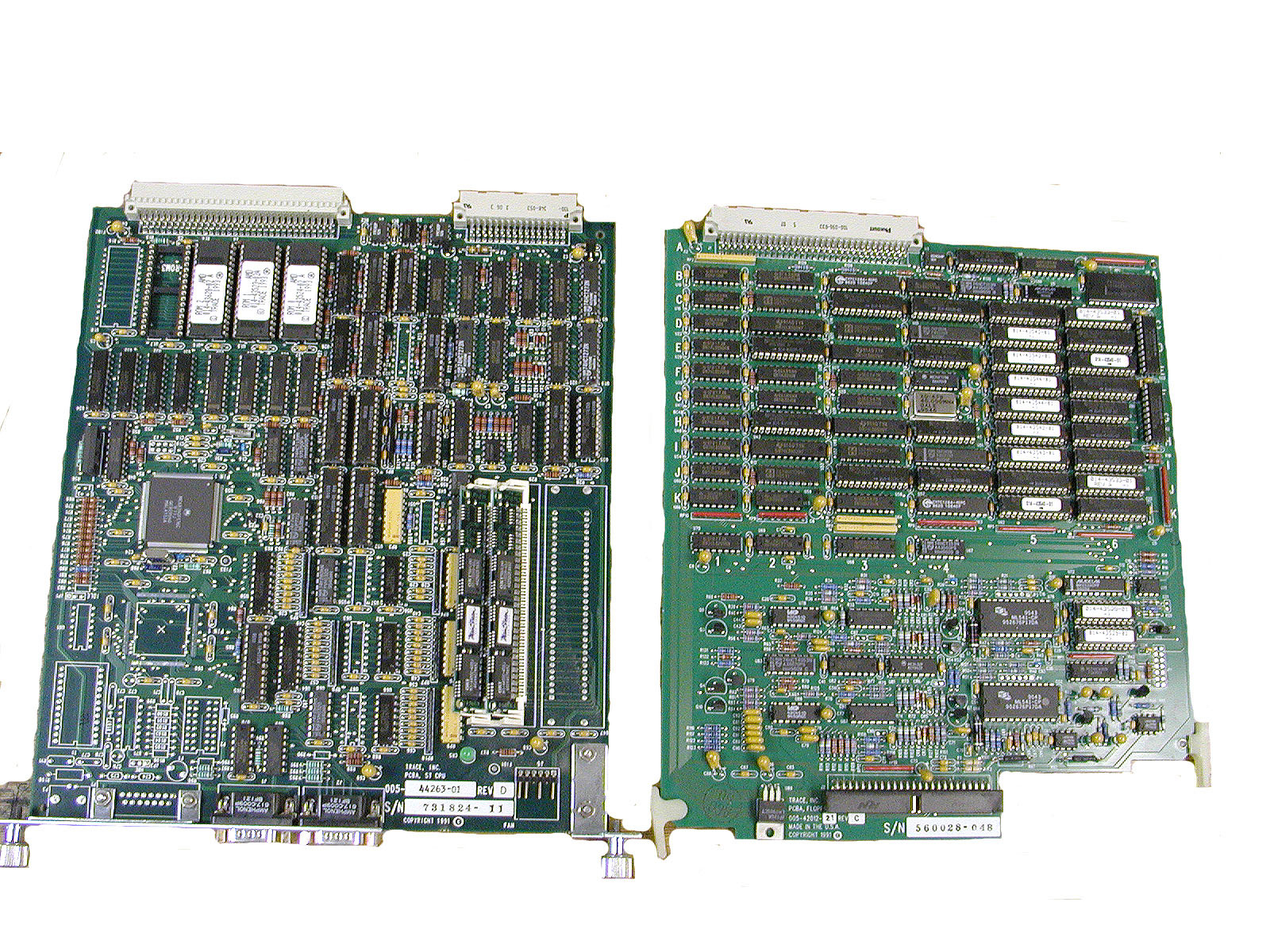

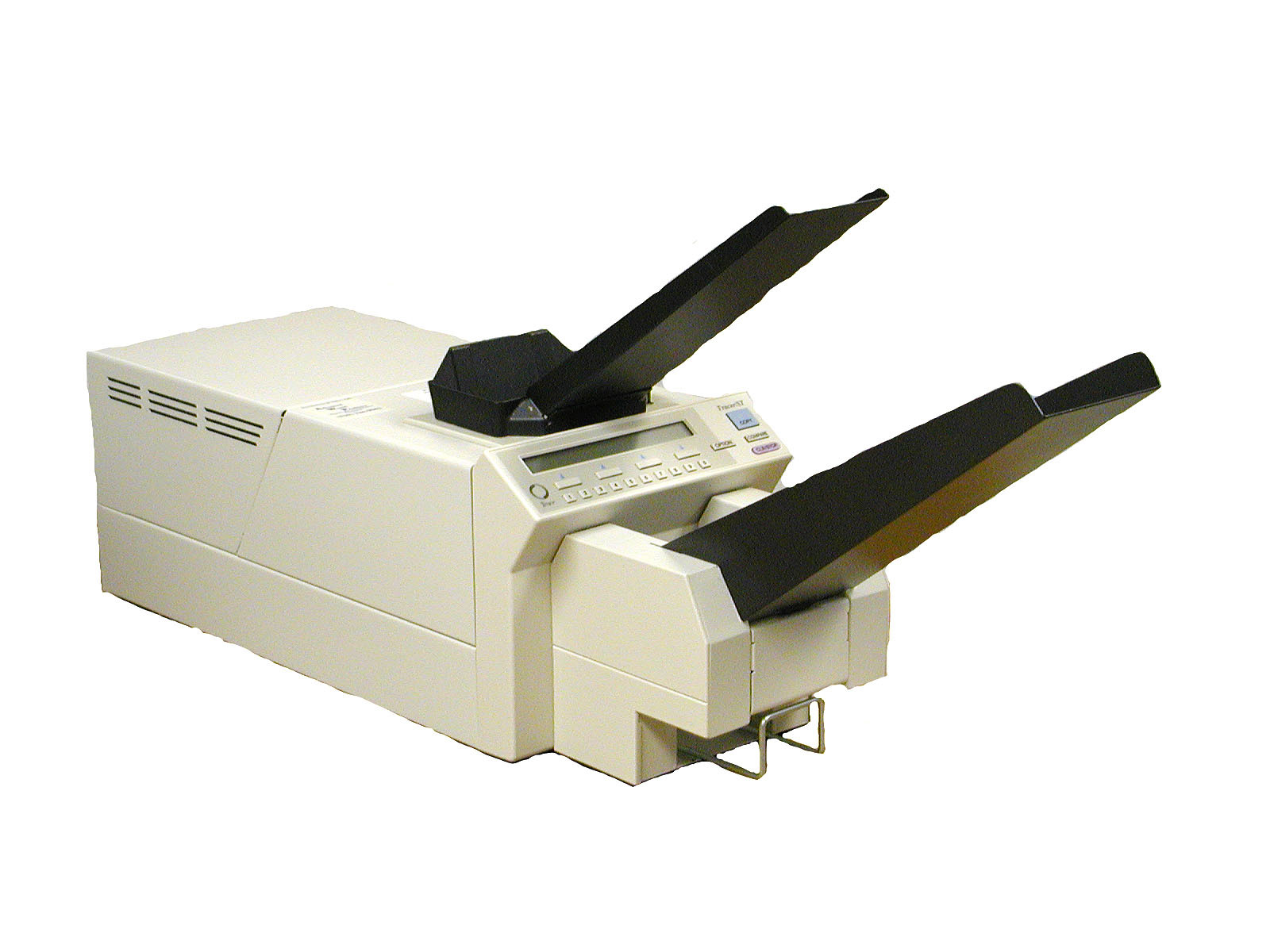

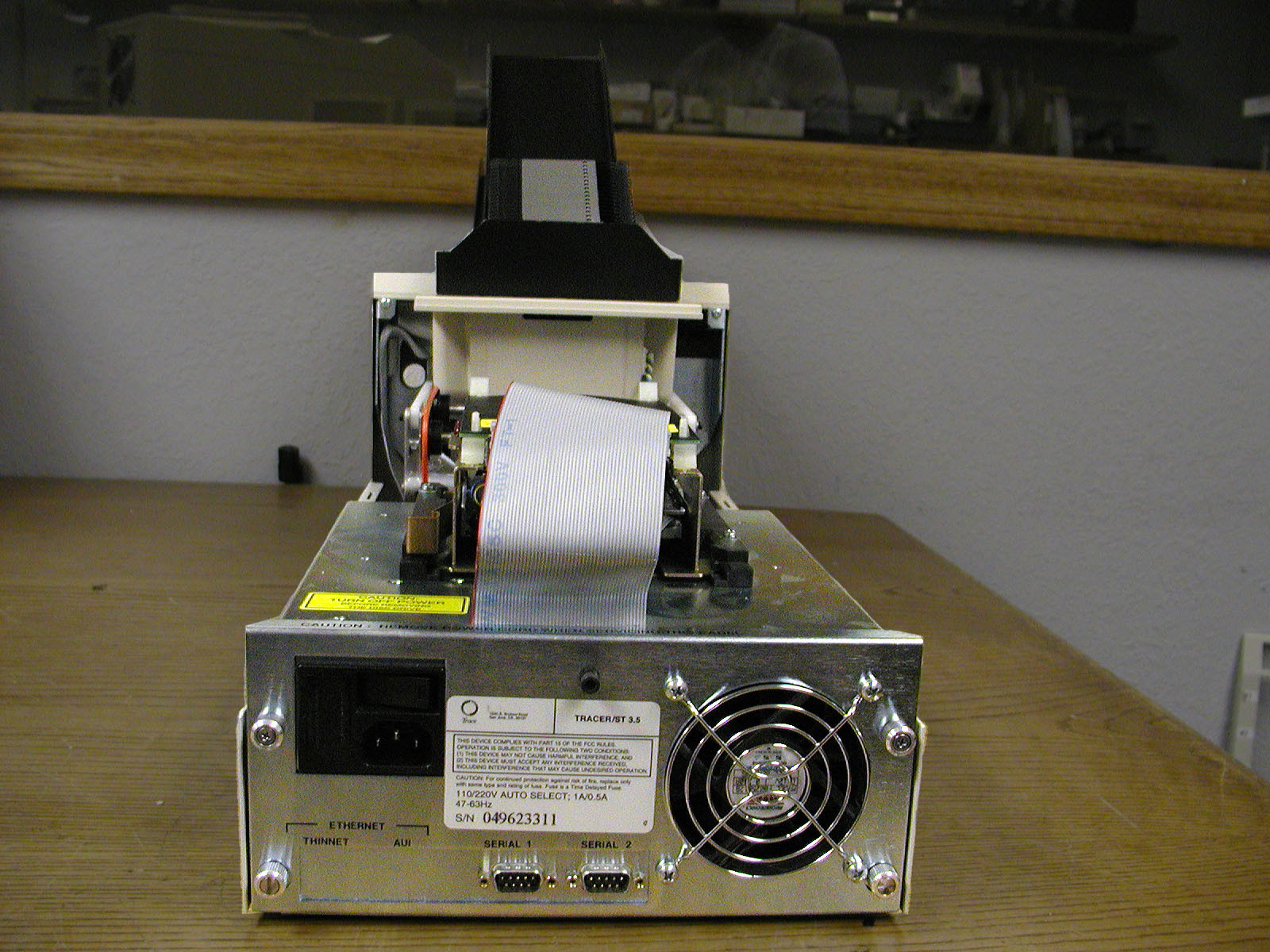

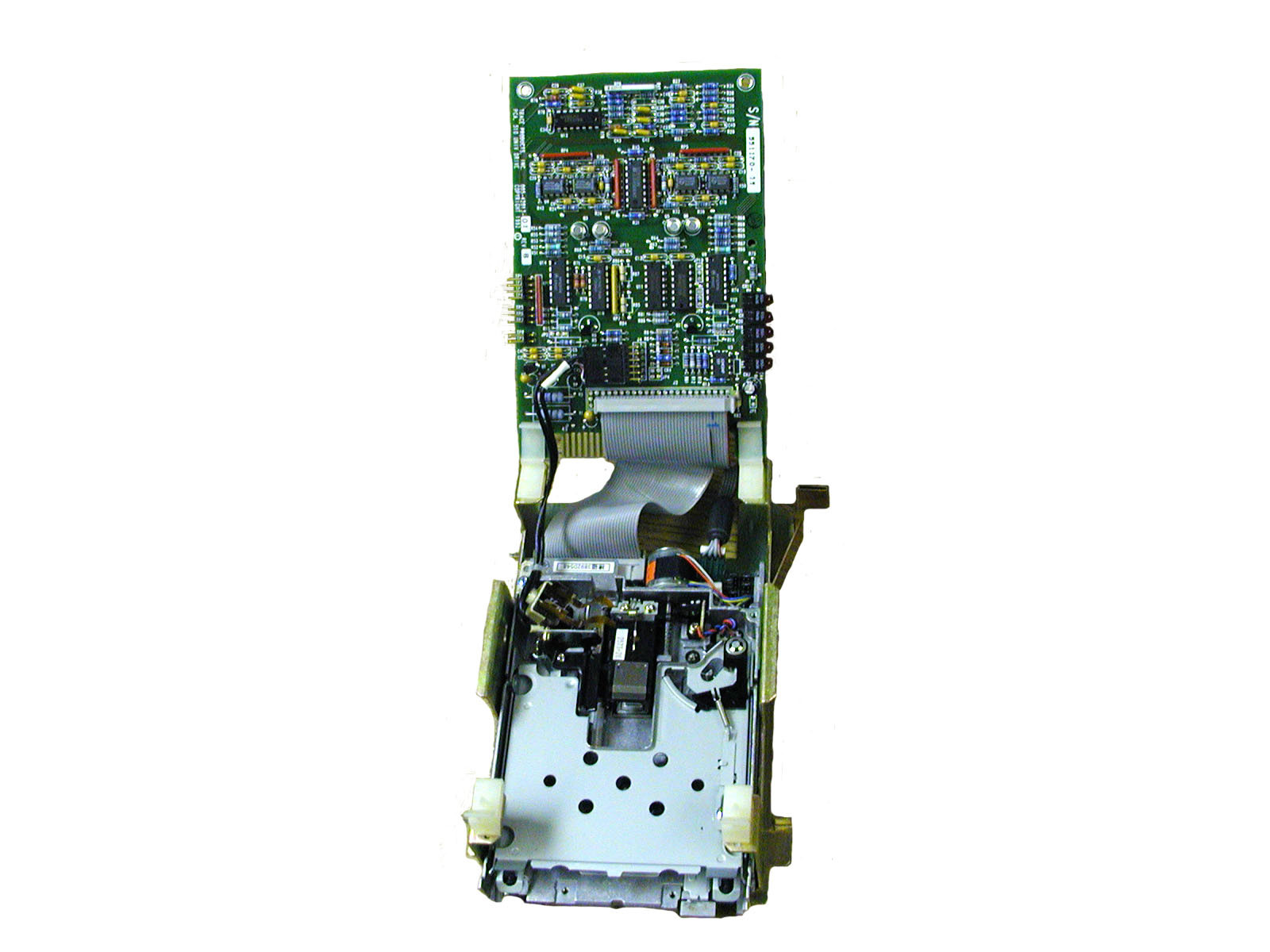

Additional Tracer/ST Pictures of Loader, Controller Boards, & Copy Drive

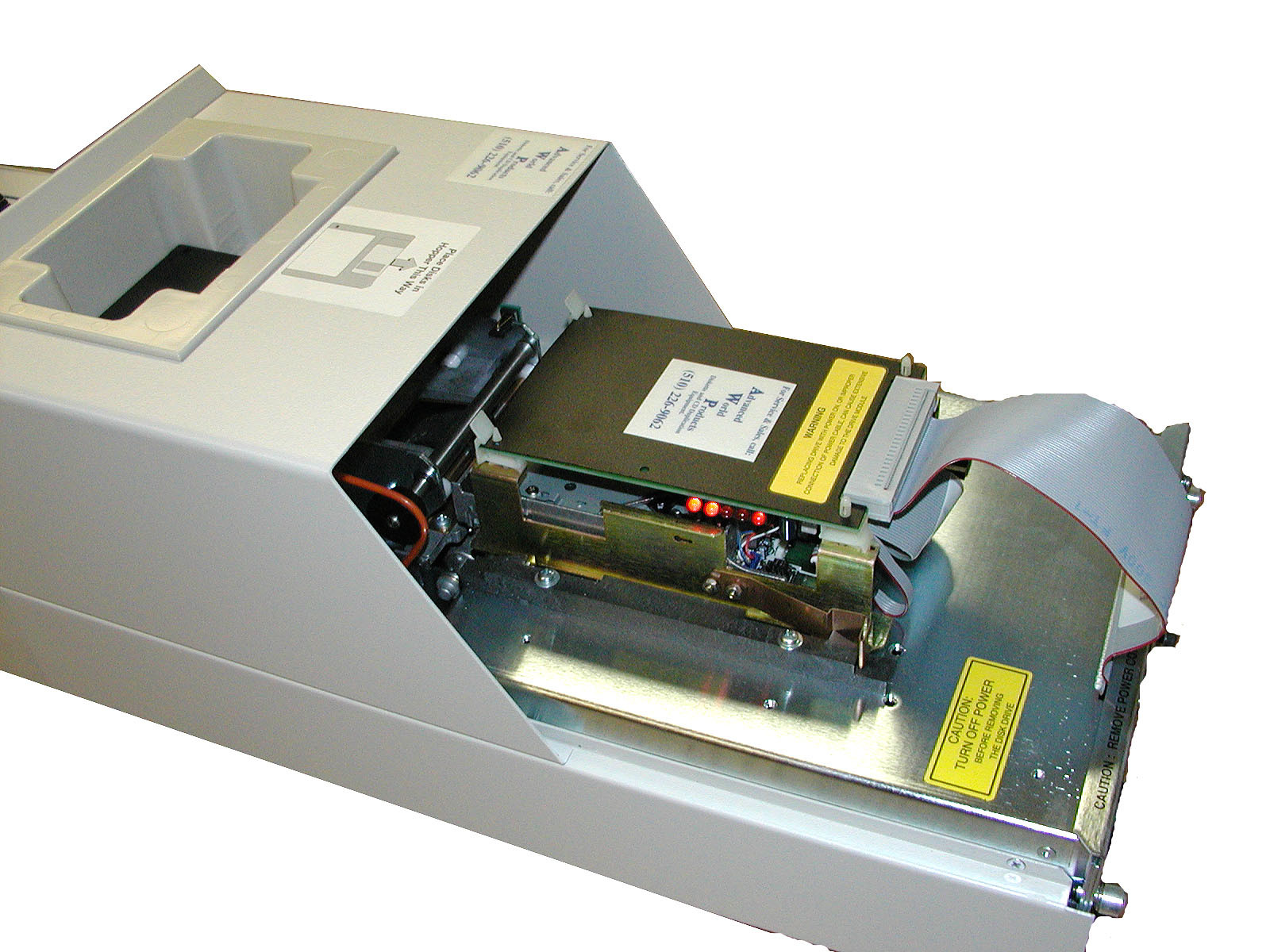

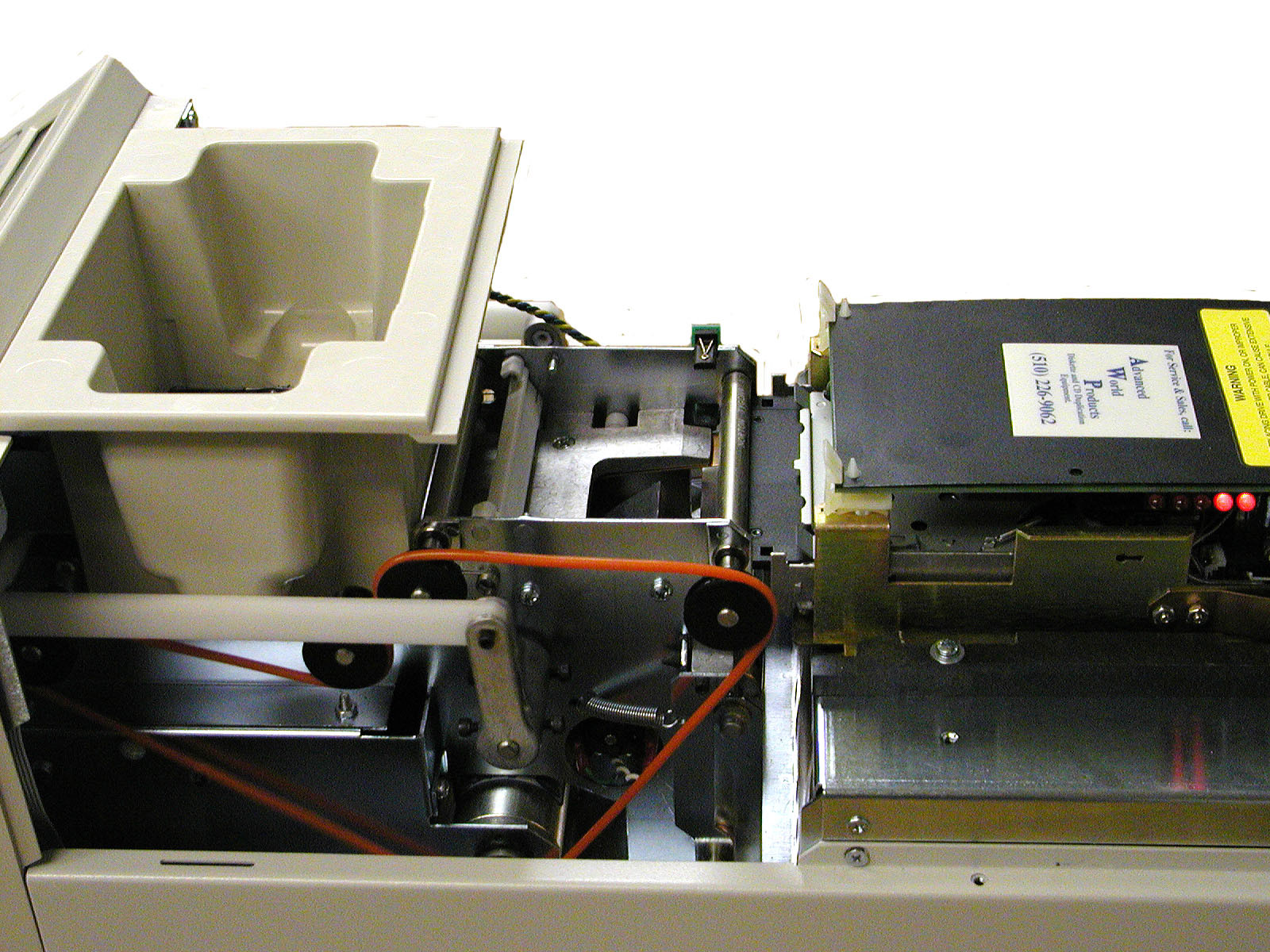

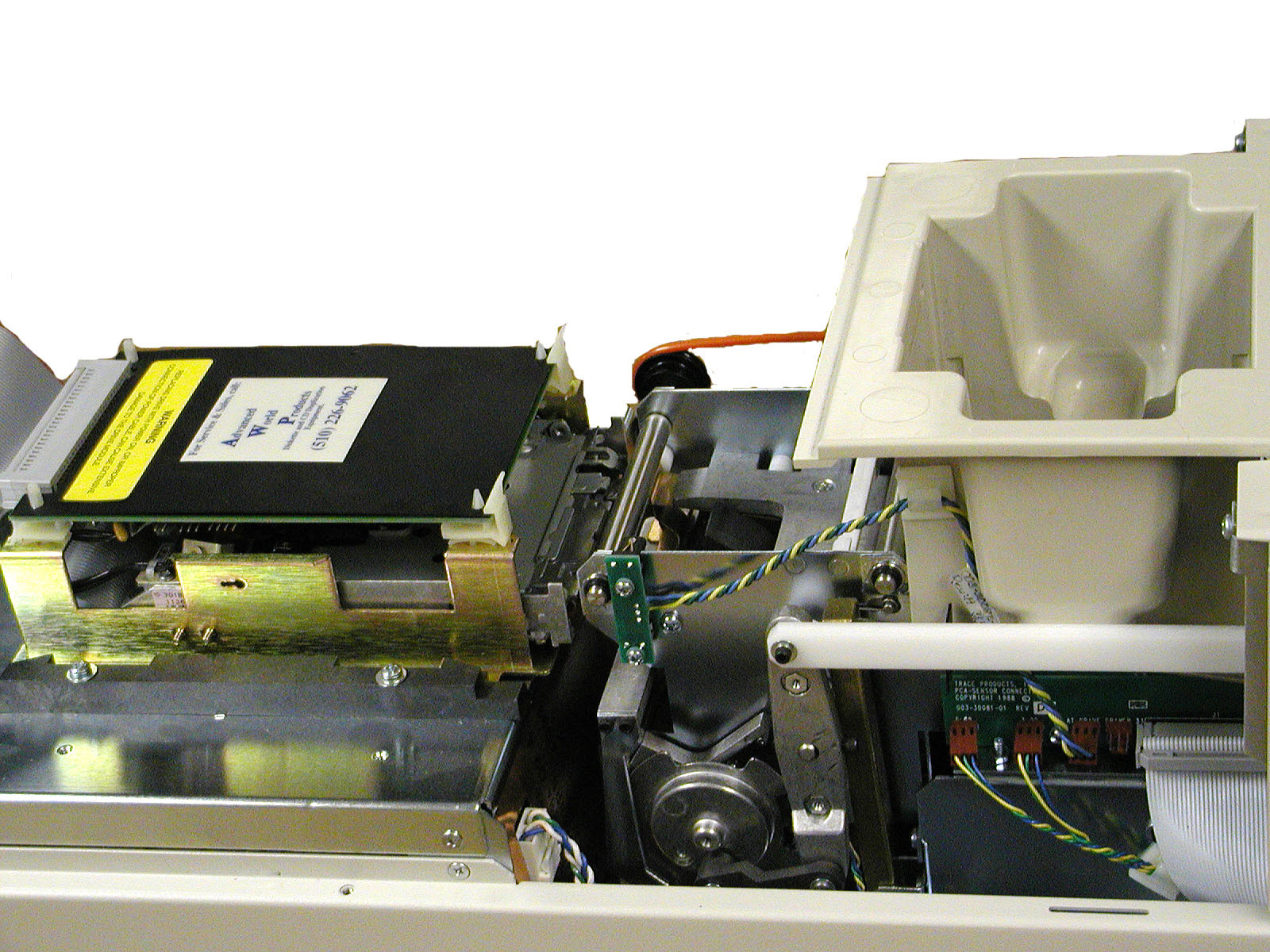

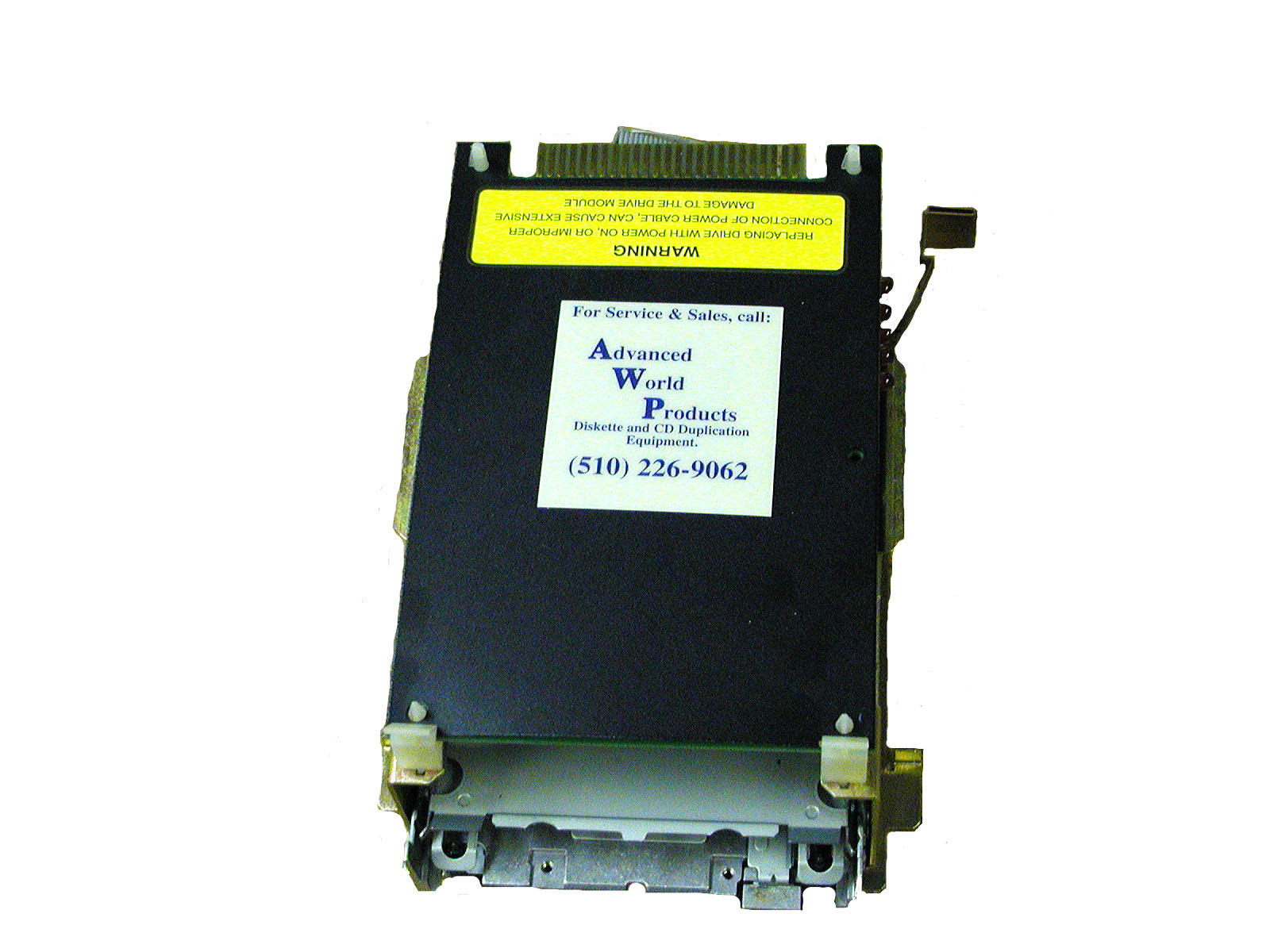

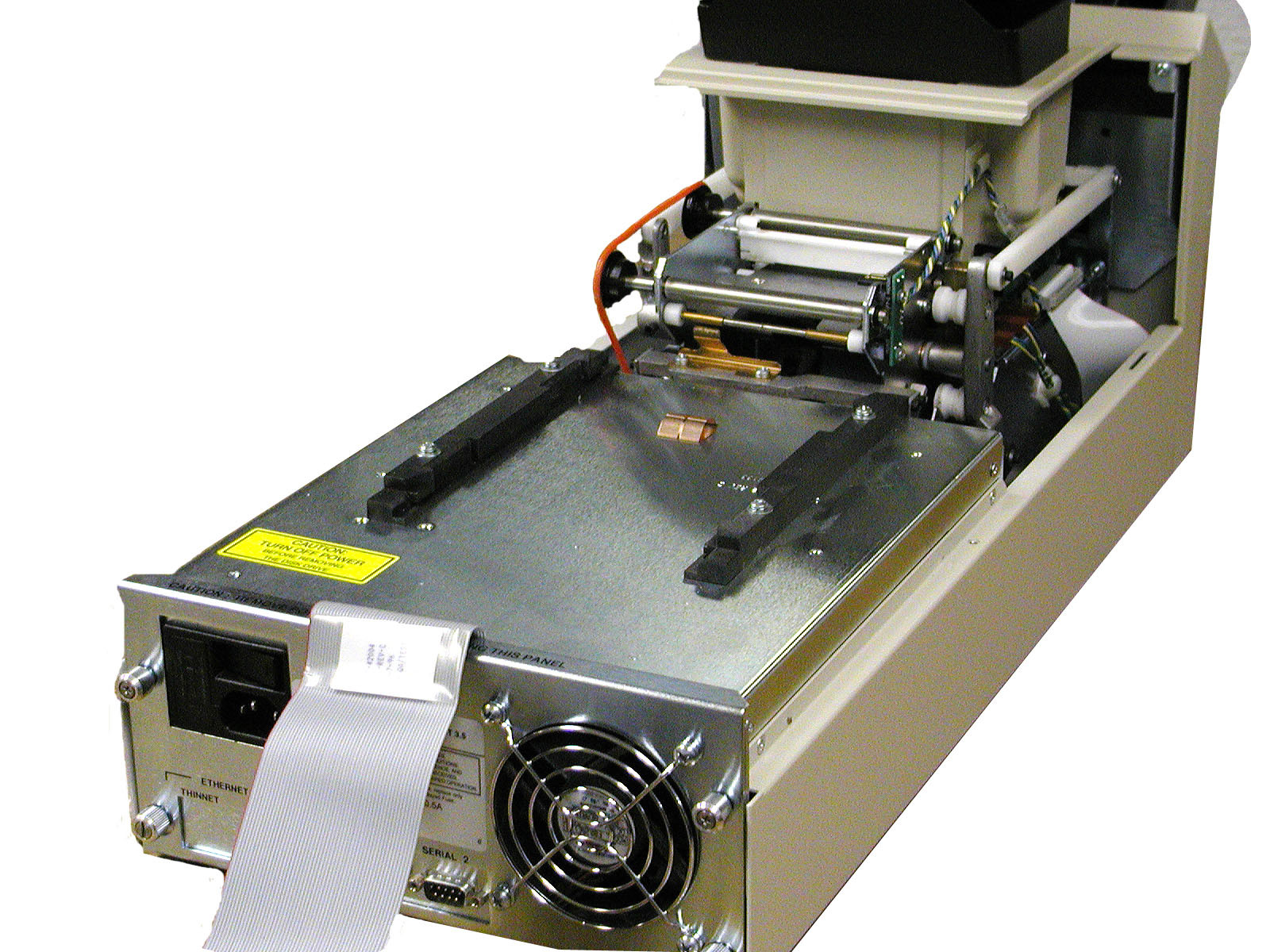

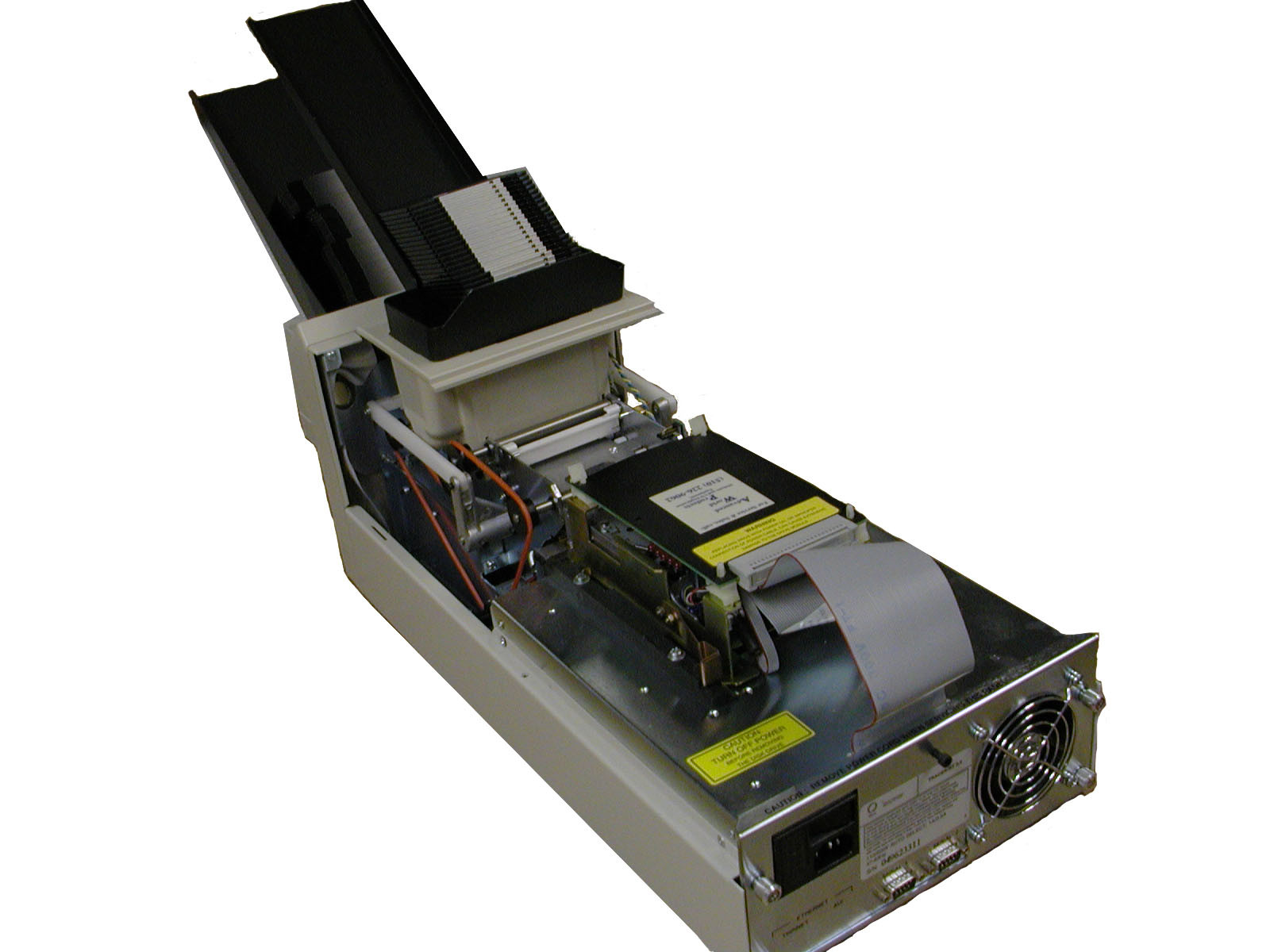

Tracer ST Disk Duplicator Back Cover Off Tracer ST Disk Duplicator Top Tracer ST Disk Duplicator Side Tracer ST Disk Duplicator Back No Boards Tracer ST Disk Duplicator Front Tracer ST Disk Duplicator Side CrankWheel Tracer ST Disk Duplicator Side Tracer ST Disk Duplicator Copy Drive Tracer ST drive open Tracer ST Disk Duplicator Front LCD Menu Tracer ST Disk Duplicator Copy Boards Tracer ST Disk Duplicator Back Boards Out Tracer ST Disk Duplicator Back Tracer ST Disk Duplicator Back Tracer ST Disk Duplicator Back Panel Open Tracer ST Disk Duplicator Back No Drive
