Markforged X3 / X7 Industrial 3D Printers – Gen 2

X3 / X7 Features
• Onyx, Onyx FR, Onyx ESD, TPU, PLA Composite Material Support
• X7 – Fiberglass, Kevlar, Carbon Fiber

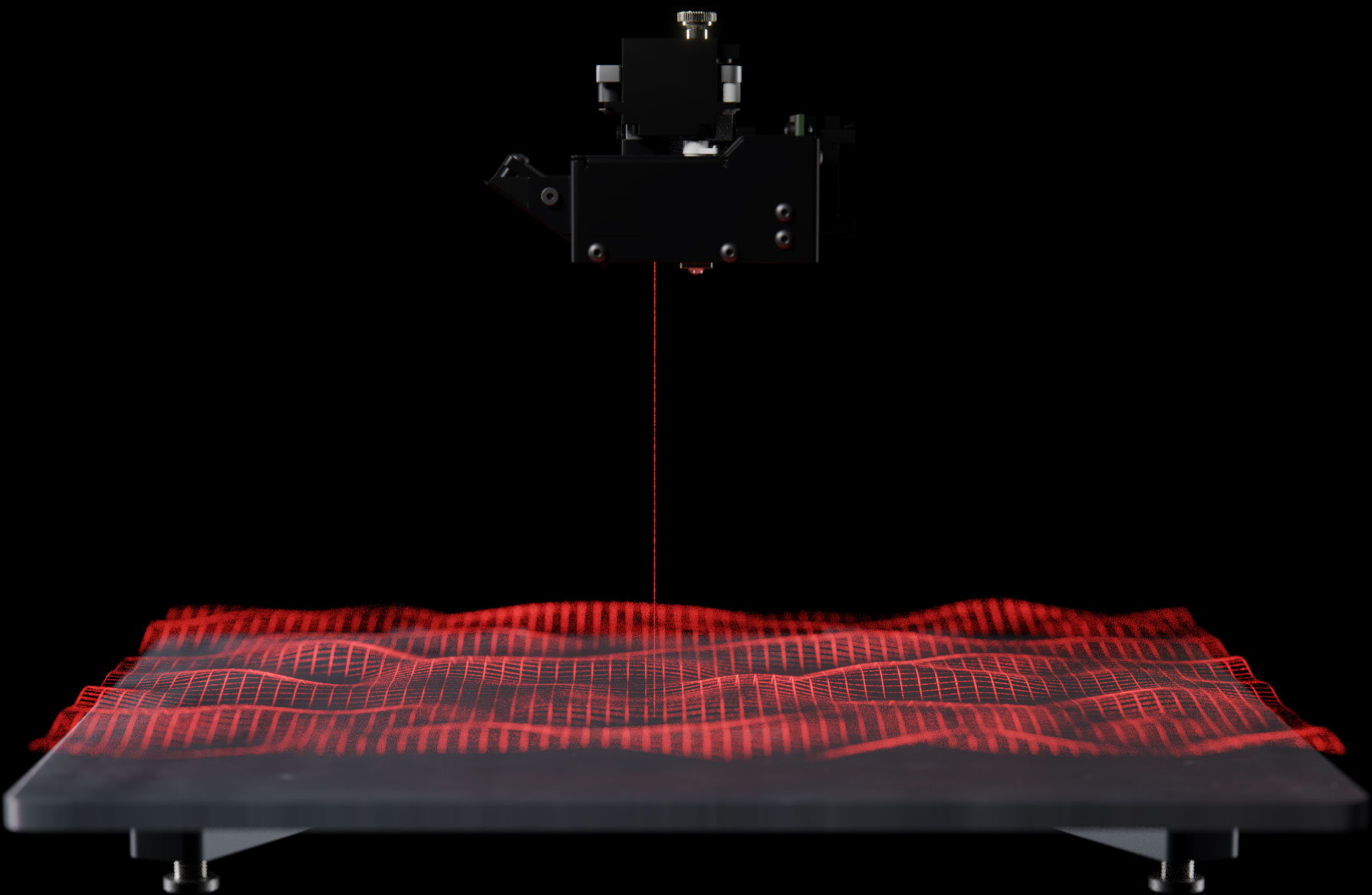

• Laser Bed Leveling
• Adaptive Bed Leveling During Print
• Dual Extruder Printhead
• Parts Strong as 6061-T6 Aluminum
• Strong, Accurate, Beautiful Parts
• Removable Printbed
• Eiger Basic Cloud Slicing Software
• Includes Printer, Drybox, Spare Nozzles, Toolkit



Top Reasons: Markforged X3 / X7 3D Printers



Uncompromised Strength, Precision and Beauty
The Markforged Industrial Series are the most powerful 3D printers on the market. With industrial-scale printing
of incredibly strong parts and first ever precision sensing systems, the X3, X5 & X7 are destined
to be the must-have printers for every manufacturer. These printers combines the benefits of
Markforged’s unique fiber reinforcement for parts as strong as metal with advanced “build
as designed” sensors and the beautiful surface finish of Onyx. The Industrial Series will empower you
to take any design concept and make it a reality.

Large Prints, High-Resolution
The large build volume of the Markforged Industrial Series makes it ideal for robotics, automotive parts,
functional prototypes and prosthetics.  With 50 micron resolution layer height, your
parts will come out of the printer with a beautiful surface finish approaching the
look and feel of injection molding.

PRINTING
Printing Technology: Fused Filament Fabrication (FFF)Composite Filament Fabrication (CFF)
Material Compatibility: Carbon Fiber, Fiberglass, Kevlar, Nylon (Onyx)
Build Size(xyz): 12.99 x 9.84 x 7.87  Inches (330 x 250 x 200mm)
12.99 x 10.63* x 7.87
(330 x 270 x 200mm)
*Printing Onyx Only
Extruders: Dual Quick Change
Pause/Resume Prints: Yes
Accuracy: 50 Micron (.002″ xy)  – 100 Micron (.004″ z)
Layer Resolution: Onyx: 50, 100, 200 Micron (.002″- .008″) / Kevlar & FiberGlass: 100 Micron (.004″) / Carbon Fiber: 125 Micron (.005″)
Min Feature Size (Nylon Only): 1.6mm
Min Detail Size: 0.8mm
Min Wall Thickness (To Add Fiber) : 2.6 – 3.0mm
Moving or Interlocking Parts (Clearance between parts): 0.5mm
Overhangs & Supports: 40+ Degrees Requires Support
Nozzle Widths: Plastic/Nylon = .4mm wide / Fiber = .9mm wide
Filament Diameter: Kevlar & Fiberglass =.34mm / Carbon Fiber = .38mm / Plastic & Nylon =1.75mm
MECHANICAL
Printer Dim (L x W x H): 22.6 x 18.4 x  36. 5 Inches (575 x 467 x 928 mm)
Chassis: Anodized Aluminum Unibody
Build Platform: Kinematically Coupled
Draft Blocking Enclosure: Yes
Printer Weight: 50lbs
Printer Shipping Weight/Dim: 75lbs, 35 x 25 x 30 Inches
SOFTWARE
Software: Cloud Enabled
Supported OS: Mac OS 10.7 Lion +, Win 7+, Linux*
Supported Browser: Chrome 30+
Supported Files: .STL
Connectivity: WiFi, Ethernet, USB Drive



onyxIntroducing Onyx

Our Most Advanced Material For High-Performance 3D Printing.  Onyx is a Black Nylon
infused with Chopped Carbon Fiber.

ONYX is vs. ABS
233% Tougher
39% Stronger
47% More Heat Resistant
27% Stiffer
ONYXNO POST PROCESSING  Delivers stunning matte black finish without mechanical or chemical finishing.
ONYXACCURATE STABLE PARTS  Added Micro-Carbon Fiber delivers increased dimensional stability and near 100% print success rate.

ONYXMARKFORGED ADVANTAGE  Onyx can be used alone or further reinforced with Fiberglass, Kevlar & Carbon Fiber.

Read More about Onyx Here



Carbon Fiber
Carbon fiber has the highest strength to weight as well as the highest thermal conductivity. Perfect for applications requiring the greatest possible stiffness and strength.

HSHT Fiberglass
High Strength, High Temperature (HSHT) Fiberglass is a material uniquely designed for users who need strong parts in higher temperature environments (over 105°C, with a heat deflection point of 140°C).

Fiberglass
Fiberglass is the most cost-effective material. It’s a strong as Carbon Fiber, but 40% as stiff, and 2X the weight. Suited to everyday applications where you need strong parts.

Kevlar
Kevlar has the best abrasion resistance and is our most flexible material. For when you need parts that are durable and resistant to impact.

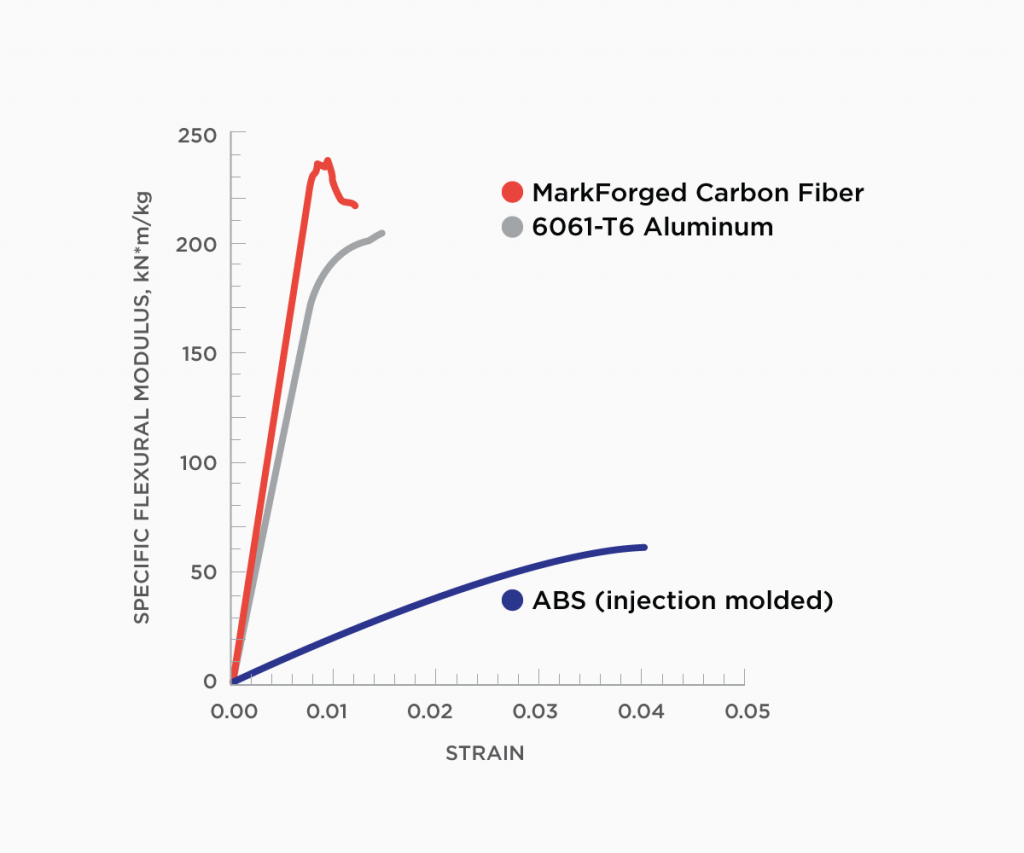

Higher strength-to-weight than 6061 Aluminum
The Mark Two prints outer contours and curves in engineering nylon and fills each part with close-packed reinforcement in continuous carbon fiber, Kevlar or fiberglass.

The printer actively switches between two nozzles during a print, creating fiber-reinforced plastic parts with a strength-to-weight ratio better than aluminum.
