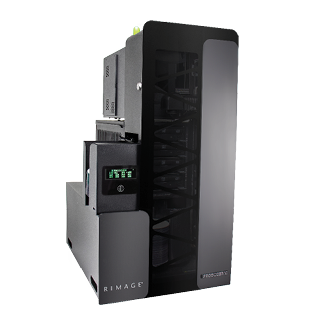

Producer V 8300N (4 Recorders)

Producer V 8300N CD, DVD & Blu-Ray Duplication Equipment Mission-critical performance and dependability

The Producer 8300N provides ultimate throughput, full-blown networking, and ‘hands-off’ operation. It is more robust and feature-filled, for demanding environments. Includes four recorders and embedded PC. Features the Everest™ Encore printer as standard on all units or you can choose the Rimage Prism Thermal Transfer Printer.

Includes Rimage Software Suite. CD Designer, QuickDisc, System Manager, WebRSM, Rapid API, Web Services.
•New automatic printer and disc tracking for immediate job status feedback
•New includes high end Network Embedded PC built-in
•New Native SATA Recorders for accelerated DVD/CD/Blu-Ray burning
•New software features that enhance system throughput and reliability
•New internal illumination for easy viewing of discs
•New Integrated DiscWatch Status Light
•Data-Merging Flexibility using proprietary architecture that supports multiple unique data streams allowing concurrent network downloading, imaging and recording in a single unit.
•Photo-Realistic Images using Rimage’s patented Everest™ printing technology-a groundbreaking thermal-retransfer system that redefines the industry standard.
•Economical production design makes fast turnaround of short-run projects no problem.
•User-Friendly network-based interface makes producing a CD or DVD as easy as printing a document.


data streaming – robotics – printing

Standard System

  • 8300N – Includes embedded Network PC.
  • Input Bin Capacity – 100 discs per bin (4
    bins for input).  400 discs unattended – 100 Disc External Bin
  • Native SATA Recorders
  • Perfect Print™ Optional
  • Software Developers Kit
  • Producer Software Suite
  • DiscWatch Status Light
Options Prism Plus, Everest Encore,  Blu-Ray, Non-Embedded System
Supported Operating Systems Embedded PC installed with Windows 10.
Printers Everest™ Photo-Realistic Full Color Thermal Re-Transfer Printer (Detailed specifications on the printer are available.) or Prism Thermal Transfer Printer.
Ribbons 3-color (CMY) panel ribbon; monochrome black ribbon.


Imageable Formats
The Imaging Server Software can create ISO 9660 images (Level 1; Level 1, Relaxed; Level 2, Joliet).
Macintosh HFS, Hybrid ISO 9660/HFS and ISO 9660 with Apple
® Extensions images.

Recordable Formats

  • CD-DA (Red Book Audio).
  • CD-ROM (Yellow Book Mode 1).
  • CD-ROM XA (Mode 2 Form 1, Mode 2 Form
    2,Mode 2 with interleaved Form 1 and Form 2).
  • CD-I.
  • Mixed Mode (CD-ROM and CD-DA).
  • Multisession (both independent and
    incremental).
  • Track-at-once and disc-at-once are
    supported.

Power  100-240VAC, 60/50 Hz, 3.7-4.7 Amp., 500 watt maximum
Relative Humidity
40-80% non-condensing
Bin Capacities
Four 100-disc bins configurable as input, output, or reject. Maximum I/O capacity is 400 discs.

8300N
33.5″ H x 17.3″ W x 24″ D
Weight w/ Everest 159.5lbs
Weight w/ Prism 134.5lbs

Operating Temperature  60ºF-86ºF (15.5ºC-30ºC). Limited by recorder.
Certifications
Emissions  FCC Class B, EN55022 Class B
Susceptibility
EN55024

Safety  UL1950, CANC22.2 No. 950, EN60950
Conformance Marks  UL, cUL, CE
Warranty
One year limited depot (U.S.A.).
Service Options
Various Rimage Service Programs are available.

Contact your local Rimage Service Representative for details.

Specifications subject to change without notice.

Producer V Series 8300N (4 Recorders)

555311-114 Producer V 8300N w/ 4 18x DVD±R/48X CD-R (Everest Encore Printer)…………….$32,090
555311-214 Producer V 8200N w/ 4 Blu-Ray Recorders (Everest Encore Printer)……………… $32,500

555312-114 Producer V 8200N w/ 4 18x DVD±R/48X CD-R (w/Prism III Printer)……………$38,520
555311-314 Producer V 8200N w/ 4 Blu-Ray Recorders ( w/Prism III Printer)……………. $38,930

Stacks, duplicates & prints 400 discs unattended with 4 Recorders. Includes Embedded PC.
