Trace 3.5″ Disk Autoloader, Labelers, Printers & Drive Repair Service
We stock and carry all parts to service and repair all Trace loaders, drives, DL-3000 labelers, DC-600 Collators, YE-Data Drives, ST 223, 6000, 7500 & 8000 copy drives. 95% of repairs are completed and shipped out the same day they are received. Most repairs are done on time & material and a free estimate will be provided prior to starting repairs.
Labor Rate: $100.00/hr.
Trace Drive Tune-up $85.00 (includes labor) Drive Repair Sheet Example
Trace Base Drive Replace $425.00 (includes labor) Drive Repair Sheet Example
Trace Loader Refurb $325.00 (Includes Orange Drive Belt, 4 Rollers (Tygon Tubing), 8
Parts Kit (3.5″ Loader) Bearings,10 BlackO-Rings, 4 Shaft Pulley).
Trace Loader Tune-up $425.00 (includes labor & basic parts (belts, pulleys, rollers, o-rings, etc.).
(Minor Tune-up) Major parts (ie., Crankwheel Motor) are additional.
Trace Loader Tune-up $895.00 (includes labor & basic parts (belts, pulleys, rollers, o-rings, etc.).
(Major Tune-up) Major parts (ie., Crankwheel Motor) are additional.Also includes
complete tear down of autoloader to remove and clean all diskette transfer roller bearings.
On StandaloneST Autoloaders it also includes removal and cleaning of keypad. Resolves issue of
key presses not working.

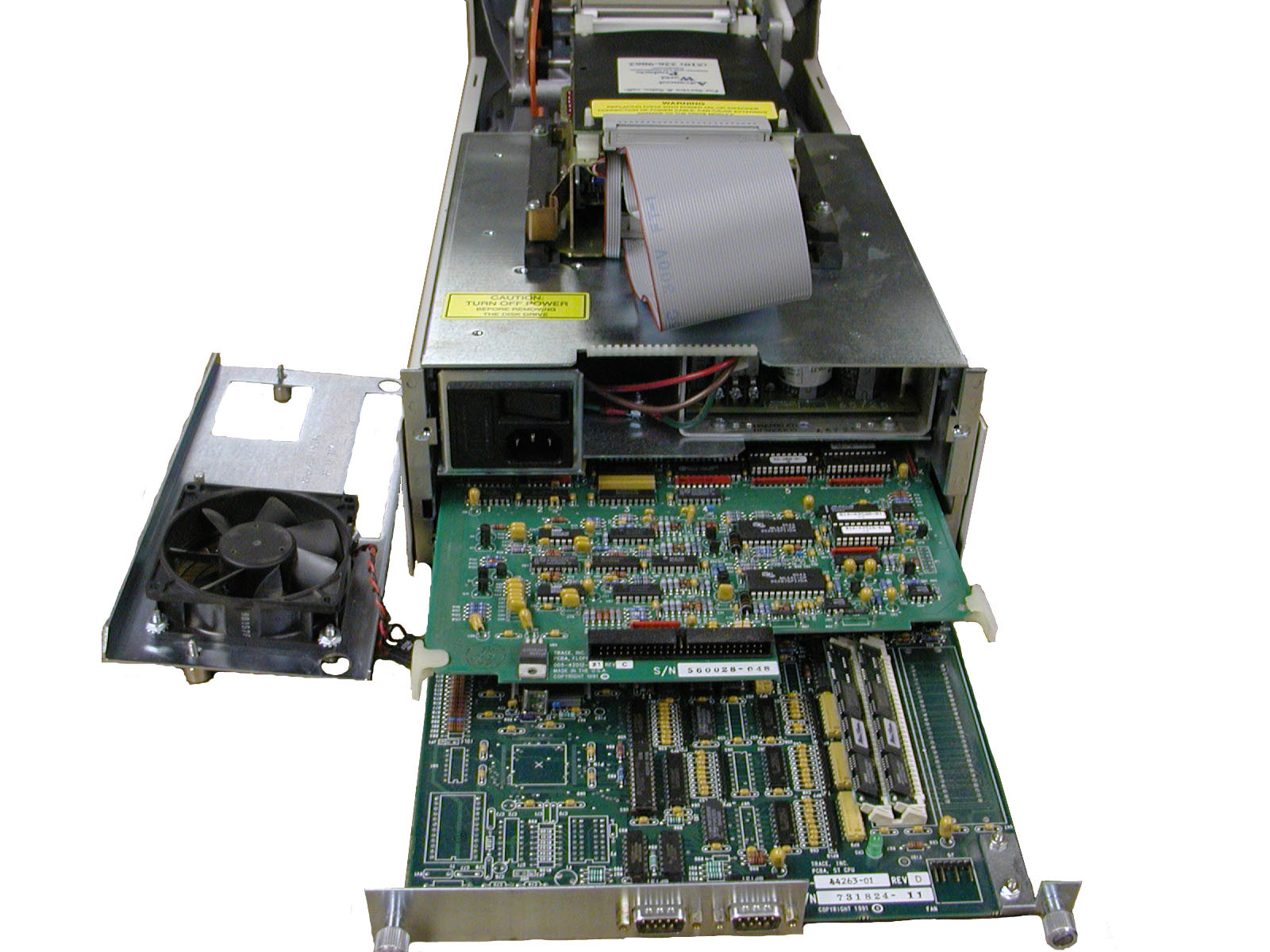

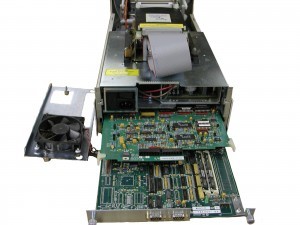

Trace ST 223/6000
Base Drive Replacement $425.00

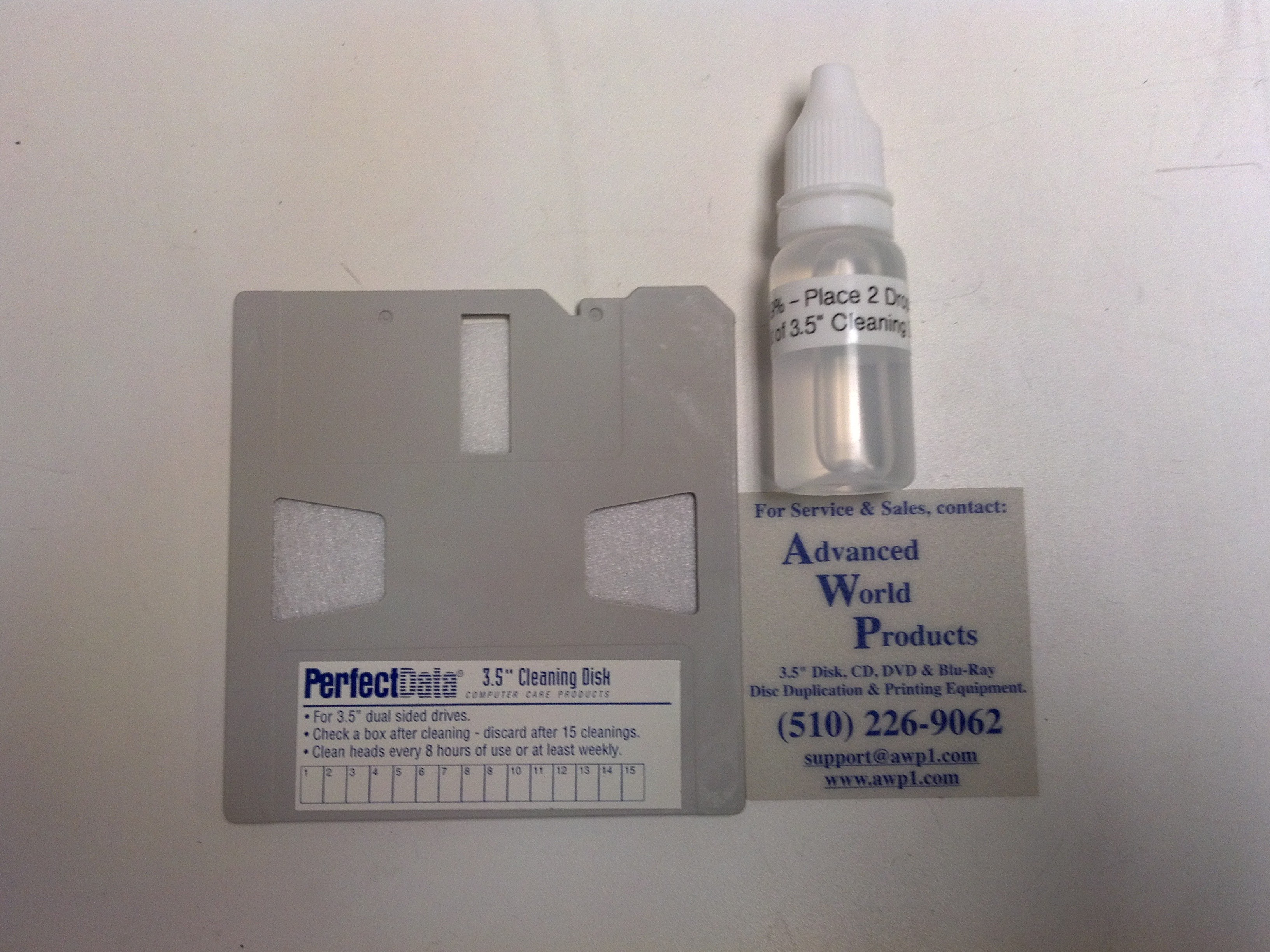

3.5″ Cleaning Disk $10.00

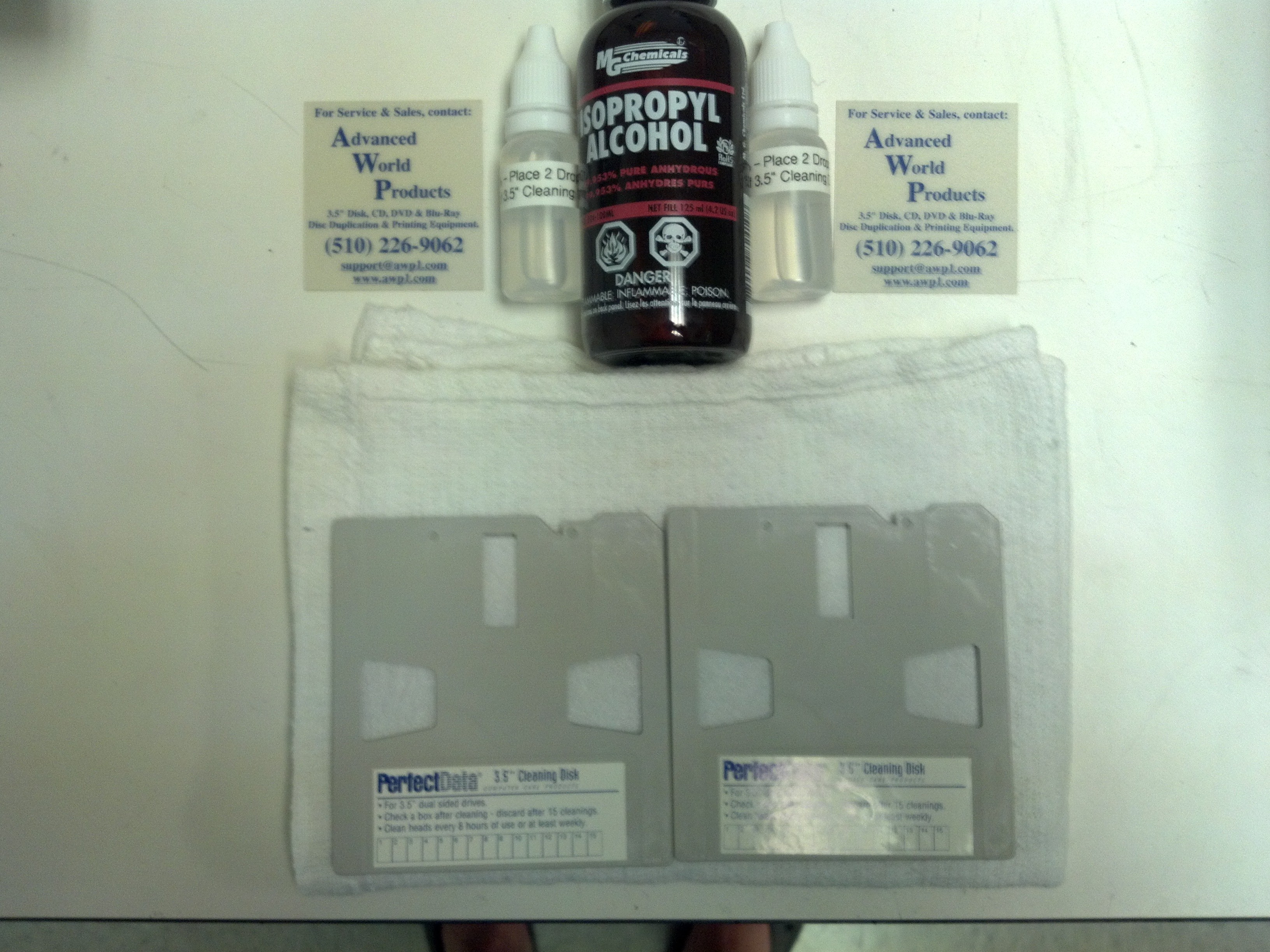

3.5″ Drive and Loader $35.00

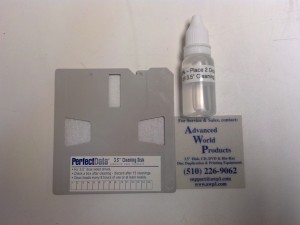

$10.00 – Includes one (1) 3.5″ Cleaning Disk and one bottle of (1) .5 Ounce IPA (15ml refillable bottle).
$35.00 – Includes two (2) 3.5″ Cleaning Disks, two (2) bottles of .5 Ounce IPA (15ml refillable bottles),
one (1) bottle 4.2 Ounce IPA, and one (1) cleaning towel for cleaning Autoloader Rollers.
DISKETTE DUPLICATION EQUIPMENT PRICE LIST
Updated 12/7/2015 - AWP (510) 226-9062
Refurbished Equipment= Used, Good condition. Worn parts replaced, includes new copy drive.
Also includes on-going service, support, 1 Year Warranty on the system and 1 YR
or 20,000 copies Copy Drive Warranty.
TRACER/ST STANDALONE 3.5″ DISKETTE DUPLICATORS
Tracer/ST Model 223R $4,500
-Copies 137/hr 720K/1.44Mb (Refurbished)
-Includes Refurbed Autoloader, New Copy Drive, Hoppers, Power Cord, ST Owner’s Manual, Quick Start Guide
TRACER/ST OPTIONS - ACCESSORIES
TRACER/ST MANUALS (PDF Download)
Tracer/ST Service Manual - 147 pages ($40) Tracer/ST 6000 Owner's Manual - 176 pages ($35) Tracer/ST 223 Owner's Manual - 156 pages ($35) Tracer/ST 8000 Owner's Manual - 210 pages ($35)
*Refurbished=Worn parts are replaced and comes with a 1 Year warranty for system. - Copy Drive is NEW. - Drive Warranty - Electronics = 1 Year. - Drive Warranty - Mechanical (ie., heads, motor,chucking pin,etc.)= 1 Year or 20,000 copies, whichever comes first. - Mechanical Drive Warranty voided by any damage caused by user's media (ie., head ripped off drive due to bent 3.5" disk shutter, etc.) - Extended warranties available. Costs depends on level of service. Call for pricing.
REFURBISHED PC BASED DUPLICATION SYSTEMS Tracer 3+ Standard System $4,200 -Tracer 3+ Autoloader (Refurbished) -PC Trace Pro Software -Single Speed 300 RPM Copy Drive -100 disk input/output capacity -Drive A: or B: Cable Set -Duplicates 30+/hr 1.44Mb Disks/hr. -1 Year Warranty (copy drive = 30 days) *Refurbished=Worn parts are replaced and comes with a 1 Year warranty for system, 30 days on copy drive.Drive, software, controller and cables are new. Extended warranty available on autoloader for $550 which includes advanced parts/system replacement if problem cannot be resolved via tech support. ALL REFURBISHED EQUIPMENT IS AVAILABLE ON A FIRST-COME FIRST-SERVED BASIS AND THERE IS NO GUARANTEE MADE ON AVAILABILITY. PLEASE CALL FOR CURRENT AVAILABILITY.
PERIPHERALS DL-3000 Automatic Disk Labeler (Refurbished) $3,999 -Labels flat or wrap around labels with no adjustments. Labels 3,200 disk/hr wrap or flat. DL3000 User & Service Manual (PDF Download) DL3000 User/Service Manual (35 pages) $25
Labor Rate: $100.00/hr. Trace Drive Tune-up: $85.00 (includes labor) Trace Loader Tune-up: $425.00 (includes labor & basic parts (ie., belt, pulley, rollers, (Minor Tune-Up) O-rings). Major parts (ie., Motors) are additional. Trace Loader Tune-up: $895.00 (Sames as Minor + Complete tear down of autoloader to (Major Tune-Up) to remove and clean all diskette transfer roller bearings.)
Trace ST 223/6000 Base Drive Replacement: $425.00 Trace Loader Refurb Parts Kit (3.5" Loader) $325.00 (Includes Orange Drive Belt, 4 Rollers (Tygon Tubing), 8 Bearings, 10 Black O-Rings, 4 Shaft Pulley). Trace Orange Drive Belt: $20.00
Base Drive Replacements include: - Old Base Drive is removed and replaced with a Brand New Base Drive. - New Base Drive is tuned to the drive electronics board: Includes optimizing Read/Write Asymmetry, Window Margin, Index-to-data, Amplitude, and Drive Alignment. - Drive comes with a Data Test sheet that shows all test parameter values and drive must pass all tests. Data Sheet Test Example. - Drive Life Counter is reset to 0 and then as a final test the drive must duplicate 25 disks without any failures and a maximum of 3 retries total for all 25 copies. - New Base drive includes a 1 Year or 20,000 Copy Warranty, whichever comes first. (Applicable shipping, tax and handling are additional to above prices)
RETURN POLICY - DISK DUPLICATION PERIPHERALS MAY BE RETURNED WITHIN 30 DAYS WITH NO RESTOCKING FEE IF EQUIPMENT DID NOT PERFORM AS ADVERTISED (IE., DID NOT COPY THE FORMATS YOU NEEDED, PROBLEMS WITH SYSTEM, ETC.).
EQUIPMENT TO BE RETURNED WITHOUT A VALID REASON WILL BE SUBJECT
TO A 20% RESTOCKING FEE. ALL EQUIPMENT RETURNED SHOULD INCLUDE ALL ORIGINAL
PACKING MATERIALS AND EQUIPMENT SHOULD BE IN SAME CONDITION AS WHEN PURCHASED.
Tech Support Documents for 3.5″ & 5.25″
Trace Disk Duplication Systems
Tracer/ST 223/323/6000/8000 (Standalone 3.5″ Disk Duplicator)
How to Clean Tracer/ST AutoLoader (Prevents or resolves disk jamming)
How to Clean Drive
How to Change a Drive
How to load 3.5″ Diskettes in Tracer 3+/ST Input Hopper
Error Messages and Solutions
Loader Diagnostics and adjustments
CPU Eeprom Checksum Failure – How to fix
Drive Eeprom Checksum Failure – How to fix
TIP 5300 Printer Ink Pad Cleaning Instructions
How to Cross Verify Disks between Tracer/ST and a Series 2000/3000
Tracer/ST Model 200 Release Notes (DMF 1.68Mb and Mag Index)
Tracer/ST Addendum CopyStream and CopySet
Tracer/ST Service Manual -147 Pages ($40)
Tracer/ST 6000 Owner’s Manual – 176 Pages ($35)
Tracer/ST 223 Owner’s Manual – 156 Pages ($35)
Tracer/ST 8000 Owner’s Manual – 210 Pages ($35)
Series 2000/3000 (Unix Based Controller for 3.5″ & 5.25″ Loaders)
Tracer 5+ Autoloader (PC Controlled 5.25″ Disk Loader)
Tracer 3+ Autoloader (PC Controlled 3.5″ Disk Loader)
DL-3000 Diskette Labeler
For Additional Tech Support please call (510) 226-9062
