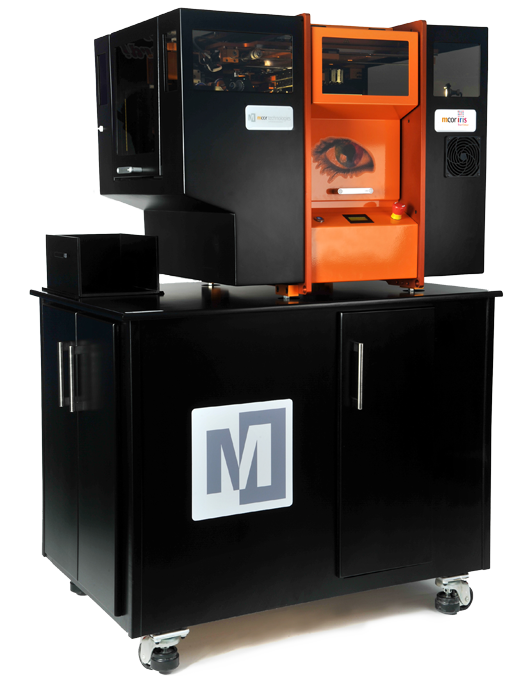

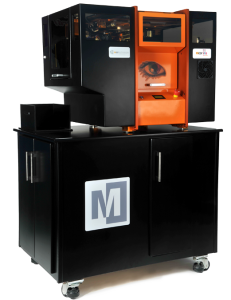

Mcor IRIS HD

MCor Iris 3D Paper PrinterMcor IRIS HD Benefits

•True Color Includes unique 360° high-definition color accuracy, International Color Consortium (ICC) color map, 1+ million colors and 5760 x 1440 x 508dpi, delivering accurate, consistent, rich, realistic color from part to part, screen to part, as well as on undercuts and sidewalls

•Unmatched Affordability Never has 3D color modeling and printing been so affordable — a fraction of the cost of any other 3D printing technology; now, with Mcor Technologies, you can print more full color models every day

•Office Friendly & Easy to Use Safe build materials, low noise level, no toxic waste

•Plus, everything you enjoy in the Mcor Matrix 300+ 3D printer

Request a Quote

Mcor IRIS HD Features &  Specs

Color

The only 3D color printer with 360° HD color accuracy, an ICC color map for the most accurate color in a 3D printer and 1 million+ colors (CYMK – 4 cartridges including black)

Mcor Technologies 3D ink ensures full color on all surfaces

Color Resolution
x, y & z axis: 5760 x 1440 x 508dpi
High resolution color on all surfaces, including undercuts and on side wall features

Machine Axis Resolution
x, y & z axis: 12µ, 12µ, 100µ
(0.0004in, 0.0004in, 0.004in)

Build Size
A4 Paper: 256 x 169 x 150mm
Letter Paper: 9.39 x 6.89 x 5.9in

Material Options
A4 Standard Office Paper 80gsm (160gsm ply colour only)
US Letter Standard Paper 20lb (43lb ply colour only)

Layer Thickness
0.1mm (0.004in)
0.19mm (0.007in ply colour only)

File Formats for Printing
STL, OBJ, VRML, Collada

Equipment Dimensions
950 x 700 x 800mm (h)1
(37.4 x 27.55 x 31.5in (h))

Equipment Weight
160kg (350lbs)1

Stand Dimensions
1160 x 720 x 940 (h)1
(45.6 x 28.3 x 37in (h))

Stand Weight
150kg (330lbs)

Power Requirements
350 W, 240 v 50 Hz or 120 v 60 Hz

Hardware Requirements
8GB memory, 100GB hard drive, 1GB Graphics Card, 2 network cards, one for the printer

Operating System
64 bit Windows XP, Windows 7, Windows 8

Regulatory Compliance
CE

Product Datasheet

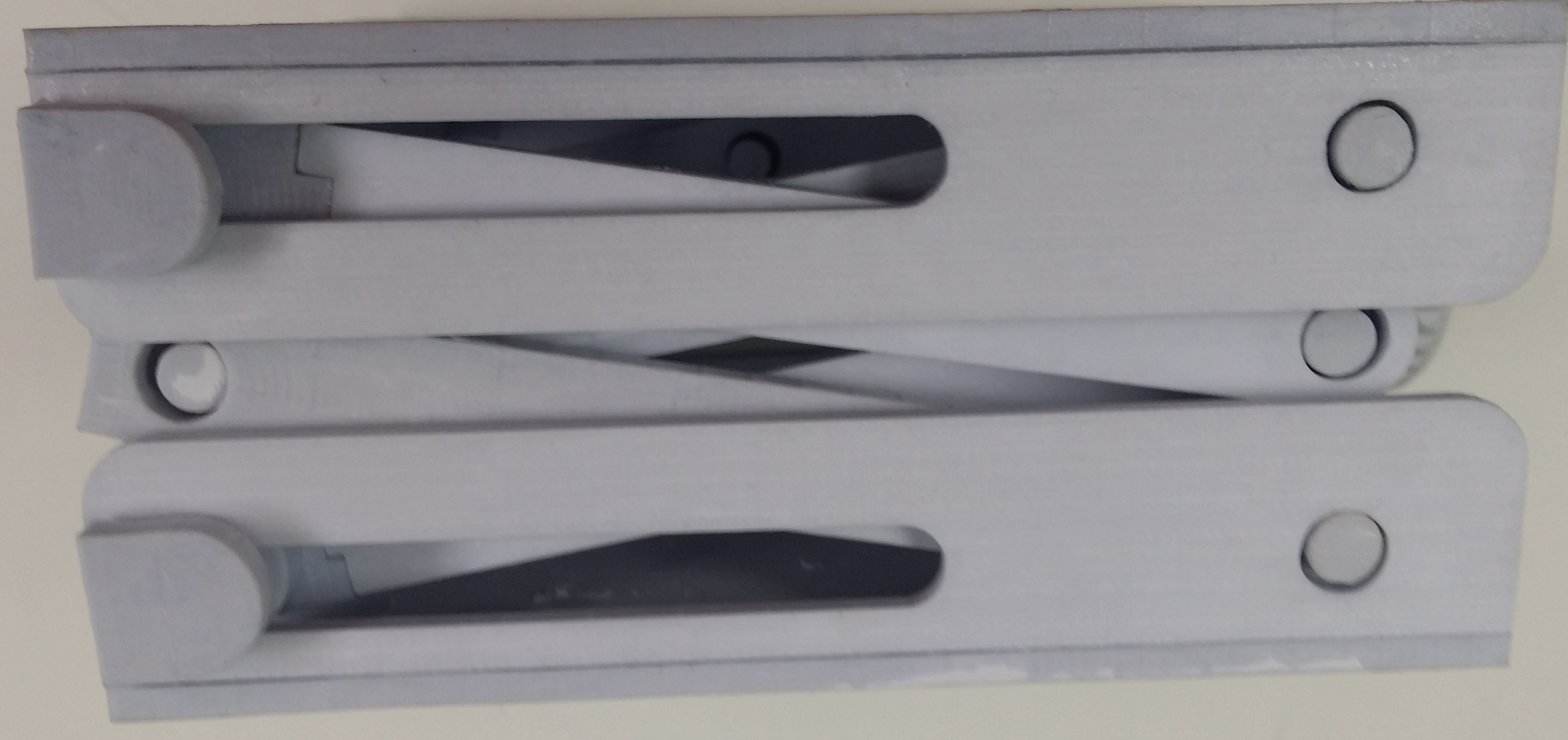

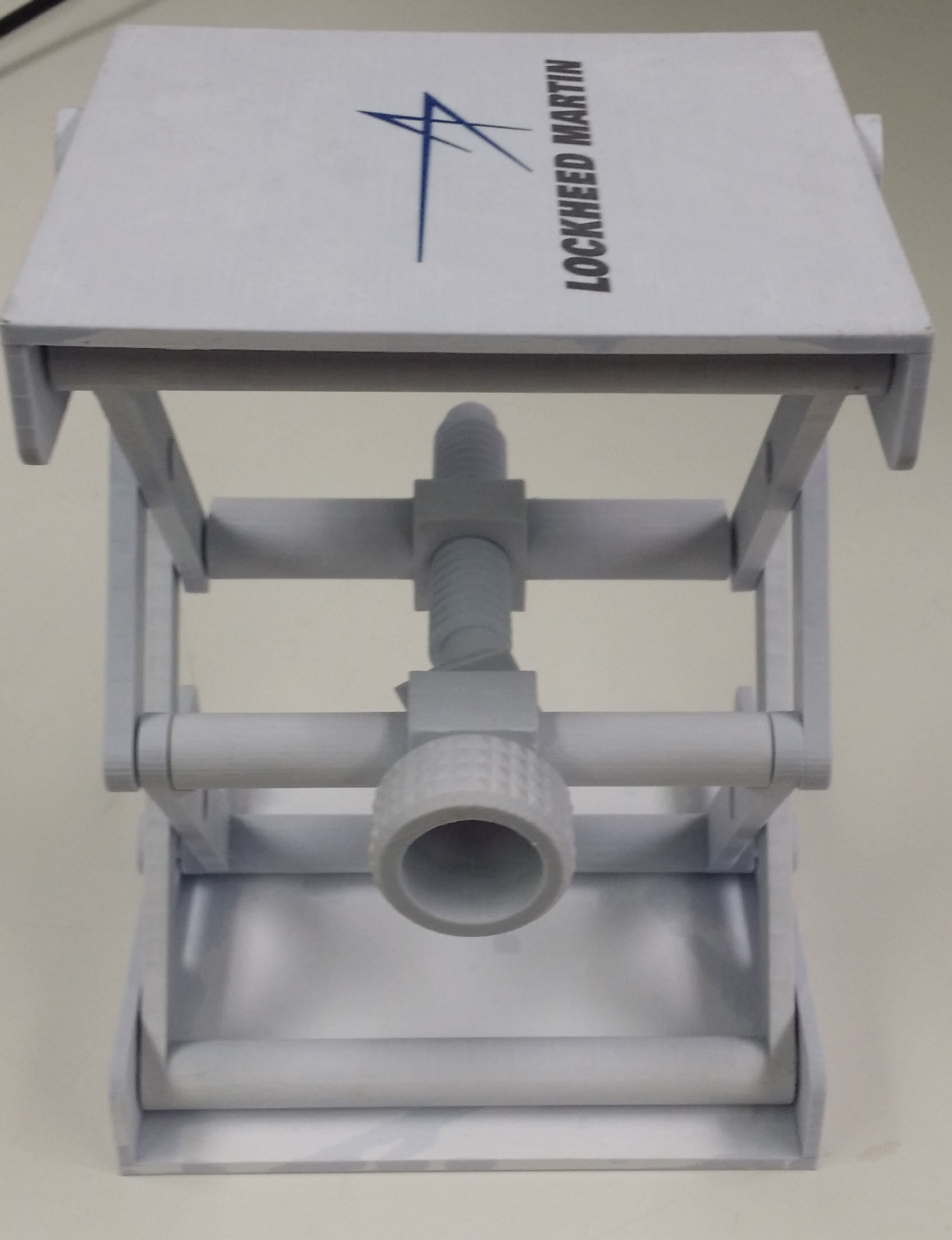

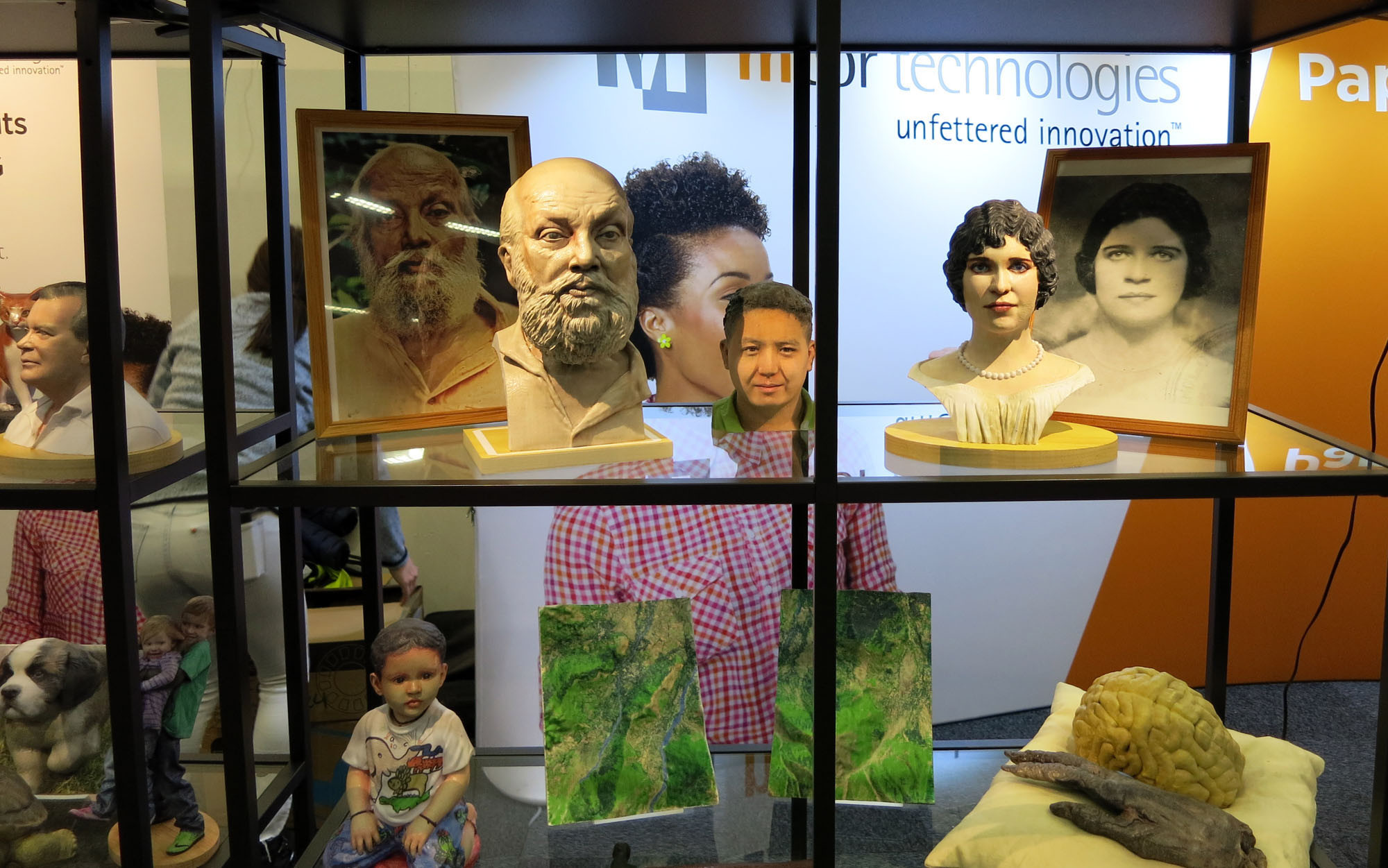

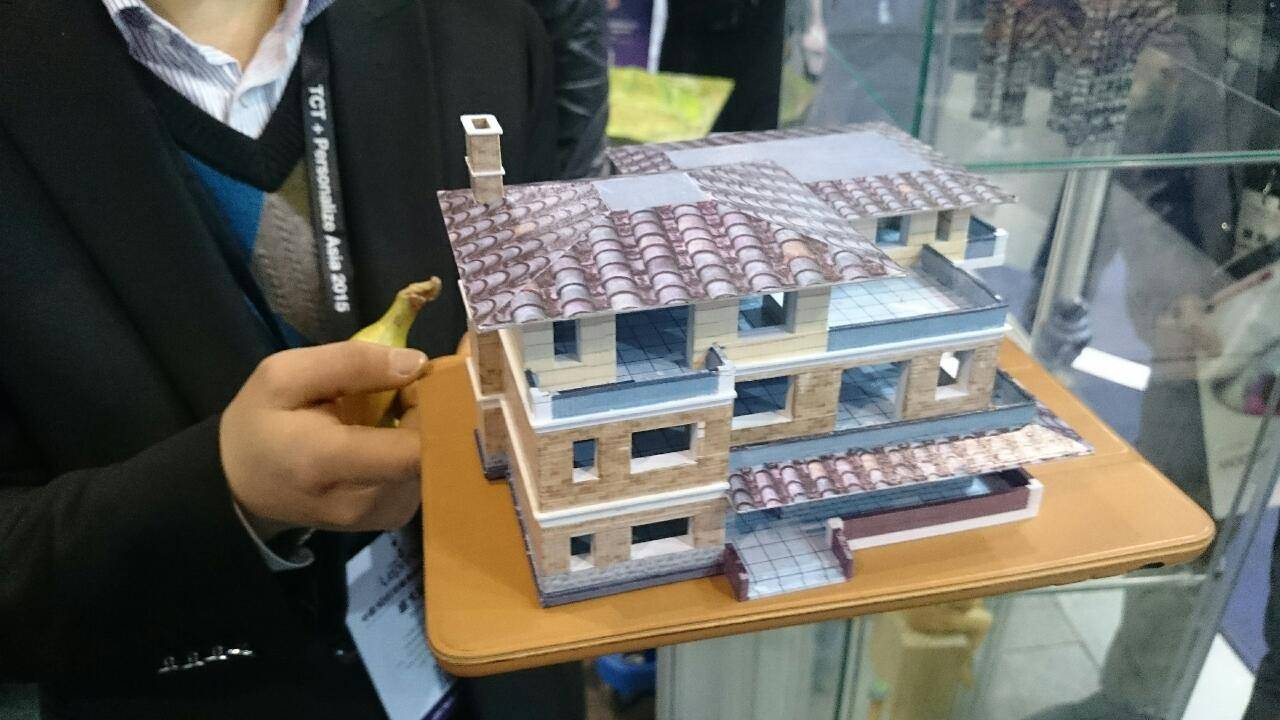

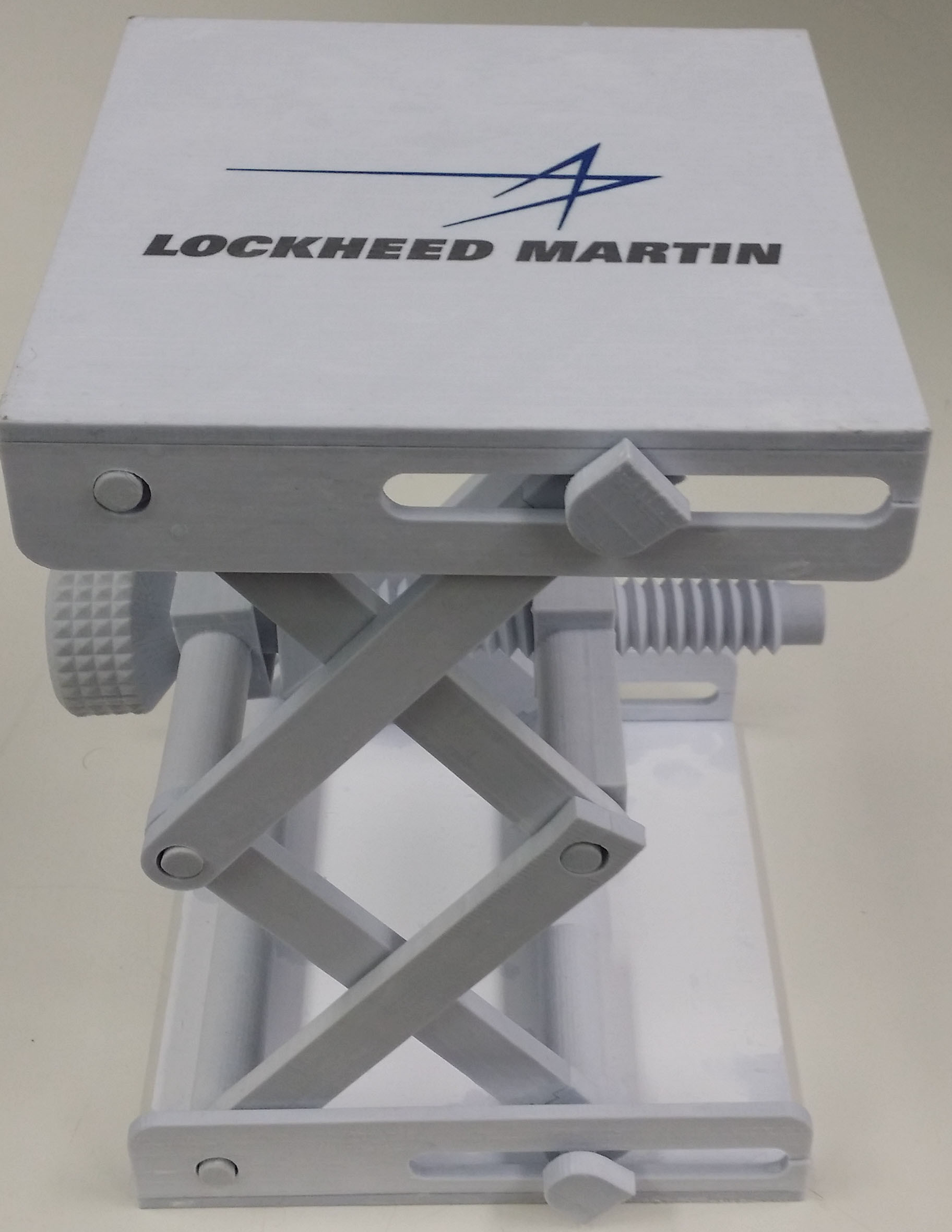

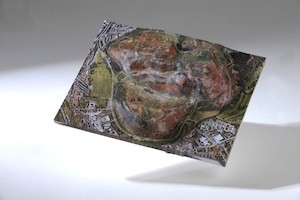

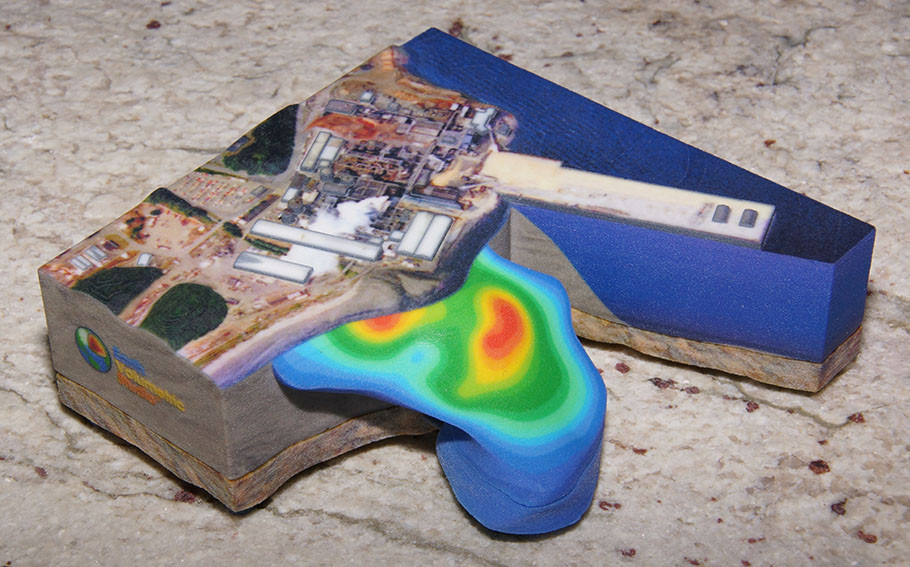

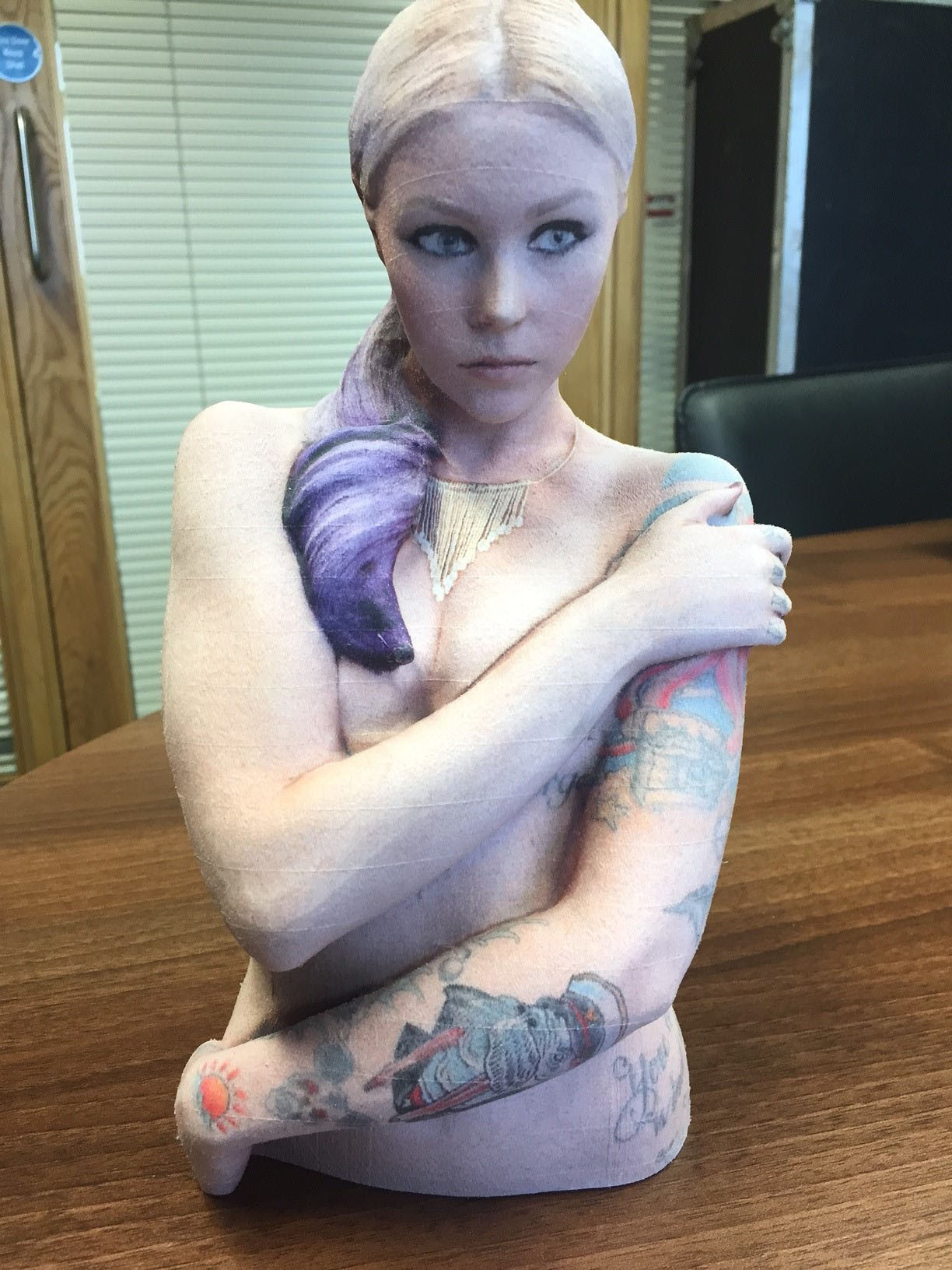

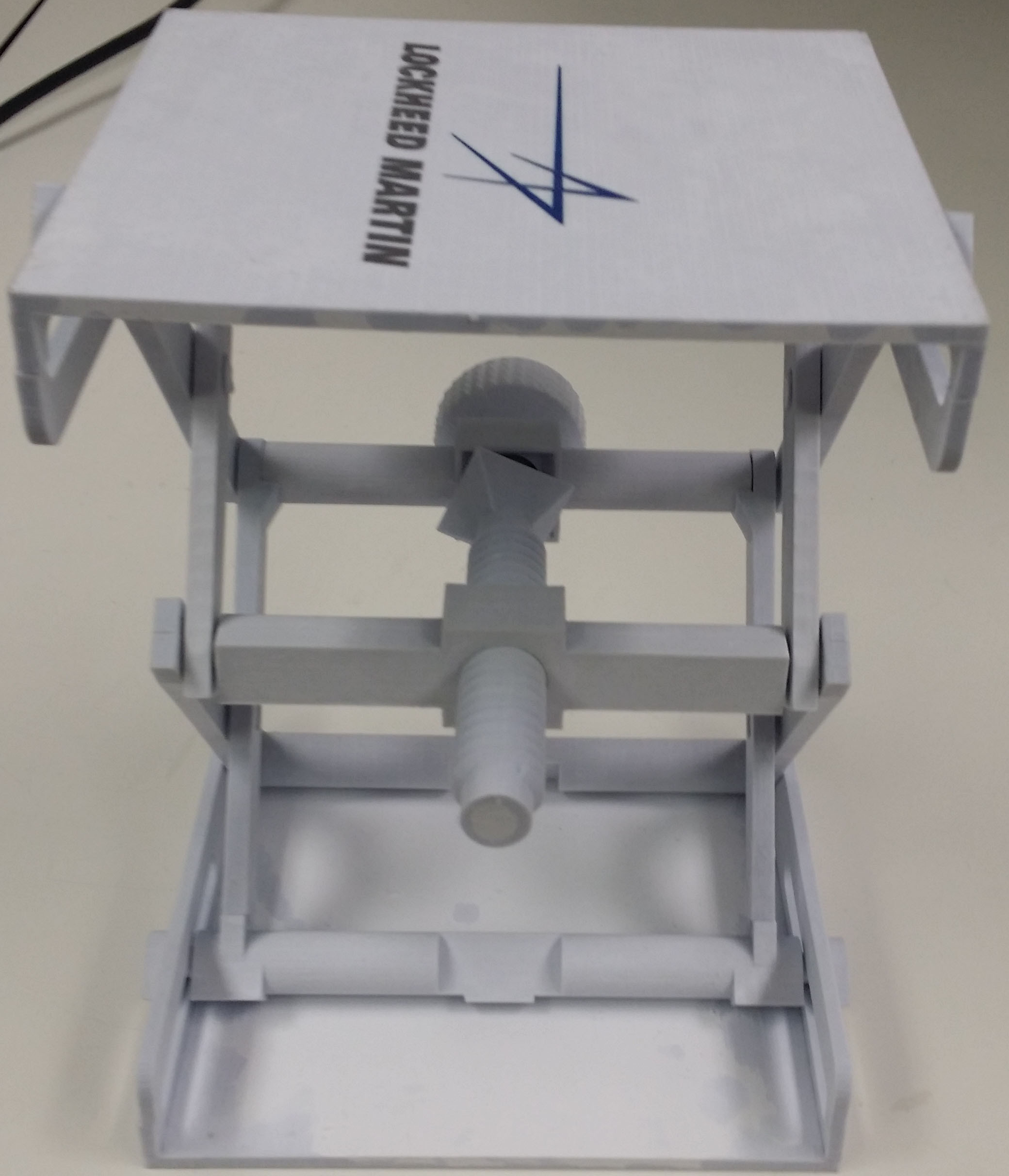

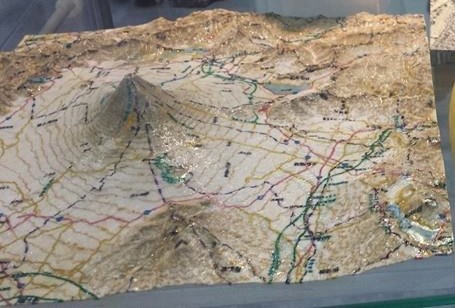

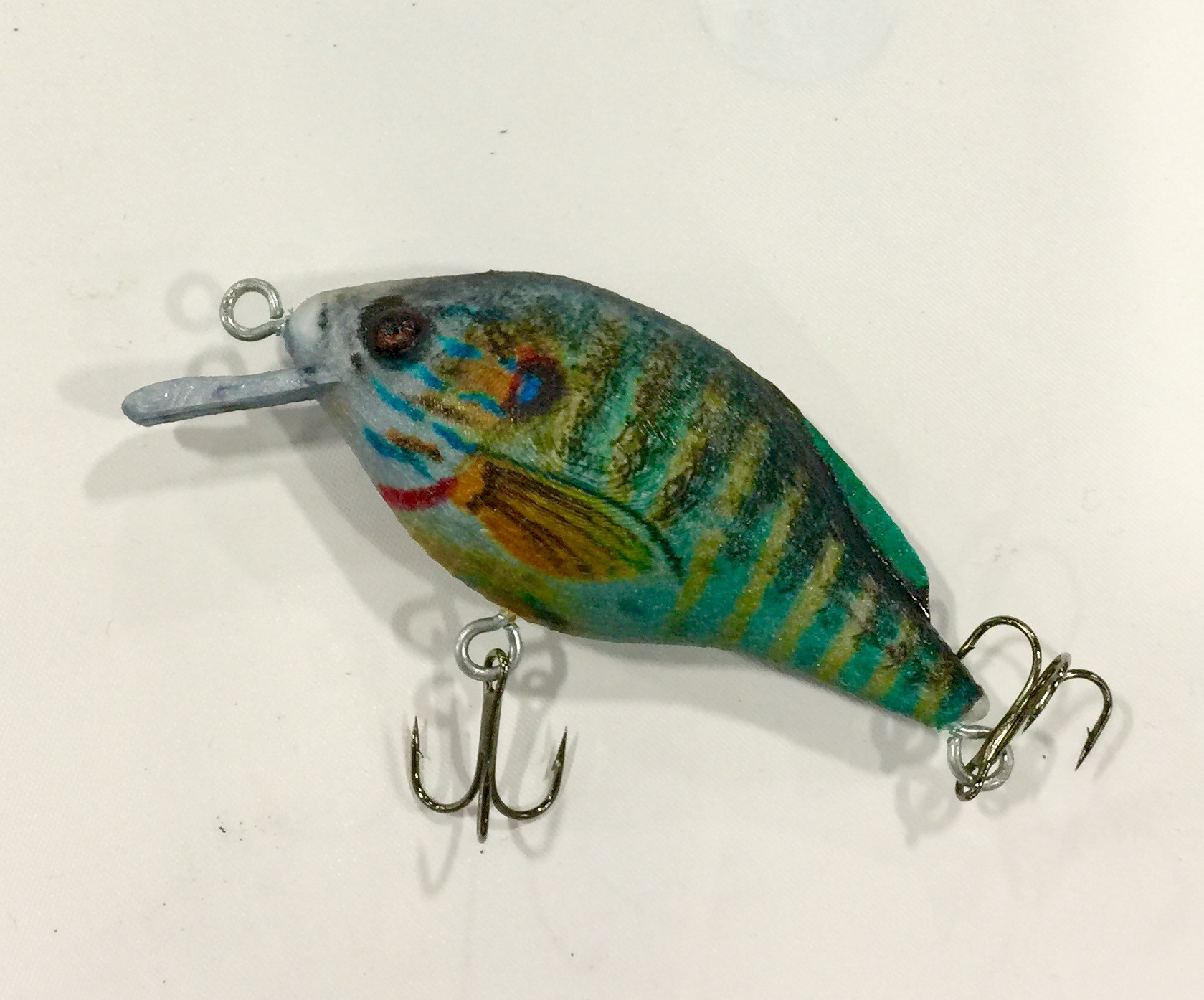

3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample3D Print Sample
