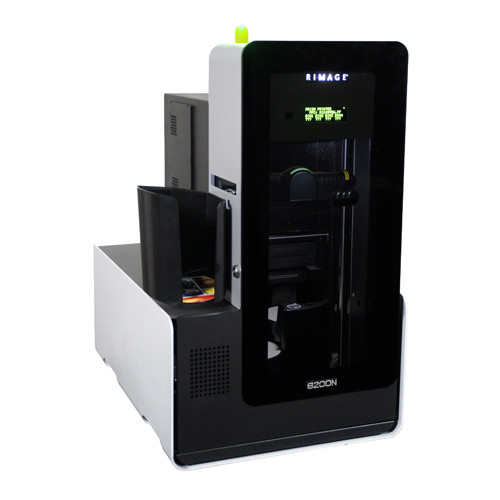

Producer IV 6200N

Rimage 6200N CD/DVD/Blu-Ray PublisherProducer IV 6200N CD, DVD & Blu-Ray Duplication/Printing Publishing System Mission-critical performance and dependability

The Producer 6200N provides ultimate throughput, full-blown networking, and ‘hands-off’ operation. It is more robust and feature-filled, for demanding environments. Includes one (1) recorder and embedded PC. Features the Everest™ printer as standard on all units or you can choose the Rimage Prism Thermal Transfer Printer.









Includes Rimage Software Suite. CD Designer, QuickDisc, System Manager, WebRSM, Rapid API, Web Services.

•New automatic printer and disc tracking for immediate job status feedback
•Includes Rimage Software Suite
•New 6200N includes high end Network Embedded PC built-in
•New Native SATA Recorders for accelerated DVD/CD/Blu-Ray burning
•New software features that enhance system throughput and reliability
•New internal illumination for easy viewing of discs
•New integrated DiscWatch Light
•The Ability to Align Customized Printing (Perfect Print) on pre-screened CDs is standard.
•Data-Merging Flexibility using proprietary architecture that supports multiple unique data streams allowing concurrent network downloading, imaging and recording in a single unit.
•Photo-Realistic Images using Rimage’s patented Everest™ printing technology-a groundbreaking thermal-retransfer system that redefines the industry standard.
•Economical production design makes fast turnaround of short-run projects no problem.
•User-Friendly network-based interface makes producing a CD or DVD as easy as printing a document.

data streaming – robotics – printing

Standard System
  • 6200N – Includes embedded Network PC.
  • Input Bin Capacity – 100 discs per bin (4 bins for input).  100 External Disc External -400 discs unattended
  • Native SATA Recorders
  • Perfect Print™
  • Software Developers Kit
  • Producer Software Suite
Options
  • Blu-Ray Recorders. Windows Server 2008. Prism or Everest 600 Printer
Supported Operating Systems Embedded PC installed with Windows 7.  Optional Server 2008.
Printers Everest™ Photo-Realistic Full Color Thermal Re-Transfer Printer (Detailed specifications on the printer are available.) or Prism Thermal Transfer Printer.
Ribbons 3-color (CMY) panel ribbon; monochrome black ribbon;
4-color (CMY-White) panel ribbon.
Imageable Formats The Imaging Server Software can create ISO 9660 images (Level 1; Level 1, Relaxed; Level 2, Joliet). Macintosh HFS, Hybrid ISO 9660/HFS and ISO 9660 with Apple® Extensions images.
Recordable Formats
  • CD-DA (Red Book Audio).
  • CD-ROM (Yellow Book Mode 1).
  • CD-ROM XA (Mode 2 Form 1, Mode 2 Form 2,Mode 2 with interleaved Form 1 and Form 2).
  • CD-I.
  • Mixed Mode (CD-ROM and CD-DA).
  • Multisession (both independent and incremental).
  • Track-at-once and disc-at-once are supported.
Power 100-240VAC, 60/50 Hz, 3.7-4.7 Amp., 500 watt maximum
Relative Humidity 40-80% non-condensing
Bin Capacities Four 100-disc bins configurable as input, output, or reject. Maximum I/O capacity is 300 discs.
Physical 6200N
28″ H x 17.3″ W x 24″ D
Weight w/ Everest 143.5lbs
Weight w/ Prism 118.5lbs.
Operating Temperature 60ºF-86ºF (15.5ºC-30ºC). Limited by recorder.
Certifications Emissions FCC Class B, EN55022 Class B
Susceptibility
EN55024
Safety UL1950, CANC22.2 No. 950, EN60950
Conformance Marks UL, cUL, CE
Warranty One year limited depot (U.S.A.).
Service Options Various Rimage Service Programs are available.
Contact your local Rimage Service Representative for details.

Specifications subject to change without notice.



Rimage Video Protect DVD Anti-Rip Technology (For Producer & Professional Series)

Rimage Video Protect is ideal for anyone creating video DVDs, to protect against unauthorized duplication.
RVP’s proprietary DVD copy control technology helps film studios and production companies protect their assets.
Copy controlled discs have full DVD playability matching that of unprotected DVDs. Menus, special features and extras remain unaffected.

3000522 Rimage Video Protect Dongle with 100 Credits (Protects 100 DVD’s).……………………….$85

3000524 Rimage Video Protect Dongle with 1,000 Credits (Protects 1,000 DVD’s)……………… $680

3000525 Rimage Video Protect Dongle with 5,000 Credits (Protects 5,000 DVD’s).…………….. $2,550


 Producer IV Series 6200N (1 Recorder)

555460-102 Producer IV 6200N w/ 1 18x DVD±R/48X CD-R (w/Everest 600 Printer)……….$15,550
555560-102 Producer IV 6200N w/ 1 Blu-Ray Recorder (w/ Everest 600 Printer)…………..$15,650

555460-202 Producer IV 6200N w/ 1 18x DVD±R/48X CD-R (w/Prism Plus Printer)……….. $17,630
555560-202 Producer IV 6200N w/ 1 Blu-Ray Recorder (w/Prism Plus Printer)……………. $17,730
Stacks, duplicates & prints 400 discs unattended with 1 Recorder. Includes Embedded PC.

Rimage Support Files

Tech Support Docs, Files/Firmware:

VIDEO HOW TO’S

Rimage Producer – Align Gripper – http://www.youtube.com/watch?v=B7KmoXSZrBw

Rimage Professional – Clean Lift Arm Shaft – http://www.youtube.com/watch?v=xqGqKVvE9wE

Rimage 5400N Test #2 – Cycle Diagnostic – http://www.youtube.com/watch?v=gLhb6ZgrNtk

Rimage 3400/5400 – Check Mailbox Slide – http://www.youtube.com/watch?v=6nif58Z7BfA

Rimage Prism Printer Clean Printhead – http://www.youtube.com/watch?v=2_wNvgau8Ys

Rimage 7100 Printer Alignment – http://www.youtube.com/watch?v=JgsZDl-FqBU

Rimage 7100 Align Carousel – http://www.youtube.com/watch?v=8HMeTlg78tY

Rimage 7100 Adjust Gripper – http://www.youtube.com/watch?v=50YUUbjZ1n0

Rimage 7100 Test #3 – http://www.youtube.com/watch?v=0js6mPbh56A

PRISM
Prism Plus Printer prints black lines randomly – Click this link for Firmware Fix

How to Align Print Margins on Rimage Prism Printers

How to Install New PrintHead in Prism Printers

Prism – How to print on disc hub

EVEREST

Clean- How To Clean Everest Printer (Manually)

Clean – How To Clean Everest Print Head (Using Ribbon Leader)

Everest II – Printed DVD Discs have bubbling on recording side – How to Fix.

Everest III Print Driver – Instructions how to install driver w/o printer on system

Rimage Everest CMYW Label Sample (with Silver Knockouts)

How to install replacement Everest Printer on Producer systems

Everest templates for Illustrator and Photoshop

PRODUCER SOFTWARE
XP Pro SP1 FireWire Fix – Download and execute this file to fix FireWire Drives not being recognized in XP.

“Corrupt License File” – Download this file, install and then reactivate

GemUtil update for 7.X Producer Software

Latest CD Rec Driver

Rimage 8.1 API Manuals

PRODUCER AUTOLOADERS
AutoPrinter does not respond to Print Jobs or Buttons Pressed – How To Fix.

Loader Firmware will not update via Production Server or GemUtils – Use GemFlash

Amigo, AutoStar, Protege & Prism Printer Diagnostics & Error Codes

How to Align Gripper to Carousel after changing pick arm
