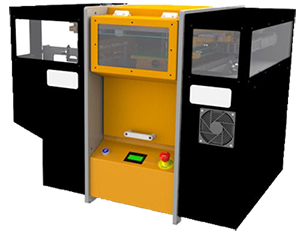

Matrix 300+

MCor Matrix 3D Paper Printer

Lowest Cost, Most Eco-Friendly 3D Printer

Matrix 300+ Benefits
•Unmatched Affordability Mcor Technologies material costs are a fraction of the cost of other technologies making it affordable for all environments.
•Accessibility The Matrix 300+ 3D printer makes 3D printing and rapid prototyping truly accessible with material that you will find in your office supply shop.
•High Resolution can be achieved on the Matrix 300+ producing models that are both realistic and have fine detail.
•Improved Speed The Matrix 300+ 3D printer is now up to 3 times faster.
•Ease of Use The Matrix 300+ has a user friendly interface making 3D printing easier than ever—as easy as printing on paper!
•Eco-Friendly The Mcor Technologies process uses letter/A4 paper and a water-based adhesive which makes the output eco-friendly.
•The Feel Factor Models straight out of the Matrix 300+ 3D printer are tough, durable and eco–friendly and meet a wide range of form fit and feel requirements.

Matrix 300+ Features & Specs

Build Size
A4 Paper: 256 x 169 x 150mm
Letter Paper: 9.39 x 6.89 x 5.9in

Build Material
A4 (80 gsm & 160gsm)
Letter Size (20lbs & 43lbs)

Layer Thickness
0.1 mm (o.oo4in) and 0.19 mm (0.007in in PLY colour)

Resolution
0.1mm
(0.004in)

File Formats For Printing
STL, OBJ, VRML, Collada

Power Requirements
350 W, 240 v 50 Hzor 120 v 60 Hz

Network Connectivity
TCP/IP 100/10 base T

Regulatory Compliance
CE

Hardware Requirements
8GB memory, 100GB hard drive, 1 GB Graphics Card, 2 network cards, one for the printer

Operating System
64 bit Windows XP, Windows 7, Windows 8

Equipment Dimensions
950 x 700 x 800mm (h)
(37.4 x 27.55 x 31.5in (h))

Equipment Weight
160kg (350lbs)

Stand Dimensions
1160 x 720 x 940mm (h)
(45.6 x 28.3 x 37in (h))



white

How Paper-Based 3D Printing Works

Download this complimentary 10 page white paper and learn:

  • How paper 3D printing evolved from a vision of accessible 3D printing for all to the founding of Mcor Technologies and manufacture of low-cost, professional-class 3D printers.
  • The careful technology decisions that enabled the lowest-cost, highest-quality, full-colour and eco-friendly 3D printers.
  • How paper 3D printers produce a durable physical object from a 3D file.
  • Which applications are best suited for paper 3D printing.

Fill out the form to the right to download the free whitepaper.
