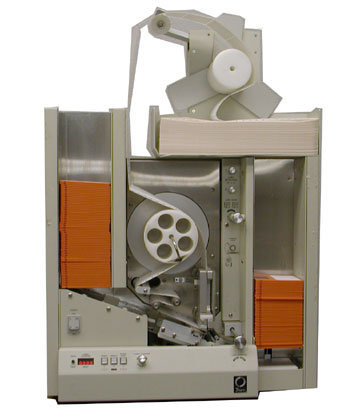

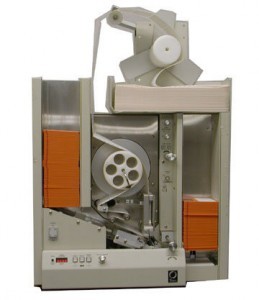

DL-3000 3.5″ Automated Floppy Diskette Labeler



WTrace DL3000 3.5 Inch Disk Labelerith superior labeling speed and exceptional placement accuracy, Trace’s DL Series Automatic Diskette Labeler offers the best solution for your pre-labeling requirements.

Now you can afford to own the most reliable labeler ever manufactured as we have a good supply of refurbished systems that can stack and label 100 disks unattended at the rate of 3,000 disks per hour.





DL-3000 Features & Specifications

•Stacks & labels 100 disks unattended

•Labels 3,000 disks per hour

• Automatically supports flat (face) labels and wrap-around labels without any additional setup.

•Supports fan-folded and roll labels.

•Holds 2,600 – 3,000 labels rolled or fan-folded

•Easy setup. Thread and start labeling in less than 5 minutes for first time operator.

•Labeling accuracy ±1/64″

•Label Height – Flat labels: 1.25″ to 2.10″

•Label Height – Wrap labels: 2.60″ to 2.75″

•Label Spacing – 1/16″ Minimum

•Backing paper width – 2.8″ to 4.0″

•Dimensions – 21″W x 15″D x 22″H

• Weight – 60lbs.

•Power Requirements – 190 Watts, 120/240 VAC, 50/60Hz

• Operating Temperature – 50 to 122°F (10 to 50°C)

•Operating Humidity – 10 to 80% relative, noncondensing

TRACE DISKETTE DUPLICATION EQUIPMENT PRICE LIST

Updated 12/7/2015 - AWP (510) 226-9062

Refurbished Equipment= Used, Good condition. Worn parts replaced, includes new copy drive.
Also includes on-going service, support, 1 Year Warranty on the system and 1 YR
or 20,000 copies Copy Drive Warranty.

TRACER/ST STANDALONE 3.5″ DISKETTE DUPLICATORS

PRODUCT                                                                  PRICE($)
———————————————————————————
Tracer/ST Model 223R                                              $4,500
-Copies 137/hr 720K/1.44Mb (Refurbished)
-Includes Refurbed Autoloader, New Copy Drive, Hoppers, Power Cord, ST Owner’s Manual, Quick Start Guide

TRACER/ST OPTIONS - ACCESSORIES

540 Mb Hard Disk Drive                                             $595
3.5″ AAD Alignment Disk                                           $75
Loader & Drive Cleaning Kit                                      $35
3.5″ Cleaning Diskette                                                $10

TRACER/ST MANUALS (PDF Download)
Tracer/ST Service Manual - 147 pages ($40)
Tracer/ST 6000 Owner's Manual - 176 pages ($35)
Tracer/ST 223 Owner's Manual - 156 pages ($35)
Tracer/ST 8000 Owner's Manual - 210 pages ($35)
*Refurbished=Worn parts are replaced and comes with a 1 Year warranty for system.
- Copy Drive is NEW.
- Drive Warranty - Electronics = 1 Year.
- Drive Warranty - Mechanical (ie., heads, motor,chucking pin,etc.)= 1 Year or 20,000 copies,
whichever comes first.
- Mechanical Drive Warranty voided by any damage caused by user's media (ie., head ripped off
drive due to bent 3.5" disk shutter, etc.)
- Extended warranties available. Costs depends on level of service.  Call for pricing.



REFURBISHED PC BASED DUPLICATION SYSTEMS
Tracer 3+ Standard System                    $4,200
-Tracer 3+ Autoloader (Refurbished)
-PC Trace Pro Software
-Single Speed 300 RPM Copy Drive
-100 disk input/output capacity
-Drive A: or B: Cable Set
-Duplicates 30+/hr 1.44Mb Disks/hr.
-1 Year Warranty (copy drive = 30 days)
*Refurbished=Worn parts are replaced and comes with a 1 Year warranty for system, 30 days on
copy drive.Drive, software, controller and cables are new.  Extended warranty available on
autoloader for $550 which includes advanced parts/system replacement if problem cannot be resolved via tech support.
ALL REFURBISHED EQUIPMENT IS AVAILABLE ON A FIRST-COME FIRST-SERVED BASIS AND THERE IS NO
GUARANTEE MADE ON AVAILABILITY.  PLEASE CALL FOR CURRENT AVAILABILITY.



PERIPHERALS
DL-3000 Automatic Disk Labeler (Refurbished)    $3,999
-Labels flat or wrap around labels with no
adjustments.  Labels 3,200 disk/hr wrap or flat.
DL3000 User & Service Manual (PDF Download)
DL3000 User/Service Manual (35 pages)		 $25

TRACE REPAIR/PARTS PRICING
Labor Rate:               $100.00/hr.
Trace Drive Tune-up:      $85.00 (includes labor)
Trace Loader Tune-up:     $425.00 (includes labor & basic parts (ie., belt, pulley, rollers,
(Minor Tune-Up)                   O-rings). Major parts (ie., Motors) are additional.
Trace Loader Tune-up:     $895.00 (Sames as Minor + Complete tear down of autoloader to
(Major Tune-Up)                   to remove and clean all diskette transfer roller bearings.)
Trace ST 223/6000
Base Drive Replacement:   $425.00
Trace Loader Refurb
Parts Kit (3.5" Loader)   $325.00 (Includes Orange Drive Belt, 4 Rollers (Tygon Tubing), 8
Bearings, 10 Black O-Rings, 4 Shaft Pulley).
Trace Orange Drive Belt:  $20.00
Base Drive Replacements include:
- Old Base Drive is removed and replaced with a Brand New Base Drive.
- New Base Drive is tuned to the drive electronics board:  Includes optimizing Read/Write
Asymmetry, Window Margin, Index-to-data, Amplitude, and Drive Alignment.
- Drive comes with a Data Test sheet that shows all test parameter values and drive must
pass all tests.  Data Sheet Test Example.
- Drive Life Counter is reset to 0 and then as a final test the drive must duplicate 25
disks without any failures and a maximum of 3 retries total for all 25 copies.
- New Base drive includes a 1 Year or 20,000 Copy Warranty, whichever comes first.

(Applicable shipping, tax and handling are additional to above prices)
RETURN POLICY - DISK DUPLICATION PERIPHERALS MAY BE RETURNED WITHIN 30 DAYS
WITH NO RESTOCKING FEE IF EQUIPMENT DID NOT PERFORM AS ADVERTISED
(IE., DID NOT COPY THE FORMATS YOU NEEDED,  PROBLEMS WITH SYSTEM, ETC.).

EQUIPMENT TO BE RETURNED WITHOUT A VALID REASON WILL BE SUBJECT
TO A 20% RESTOCKING FEE. ALL EQUIPMENT RETURNED SHOULD INCLUDE ALL ORIGINAL
PACKING MATERIALS AND EQUIPMENT SHOULD BE IN SAME CONDITION AS WHEN PURCHASED.



Tech Support Documents for 3.5″ & 5.25″
Trace Disk Duplication Systems

Tracer/ST 223/323/6000/8000 (Standalone 3.5″ Disk Duplicator)

How to Clean Tracer/ST AutoLoader (Prevents or resolves disk jamming)
How to Clean Drive
How to Change a Drive
How to load 3.5″ Diskettes in Tracer 3+/ST Input Hopper
Error Messages and Solutions
Loader Diagnostics and adjustments
CPU Eeprom Checksum Failure – How to fix.
Drive Eeprom Checksum Failure – How to fix.
TIP 5300 Printer Ink Pad Cleaning Instructions
How to Cross Verify Disks between Tracer/ST and a Series 2000/3000

VIDEO: How to Replace Tracer/ST Base Drive
(YouTube Link)http://www.youtube.com/watch?v=NjvkdVTqtr0&feature=c4-overview&list=UUisfX8h4AYwfxxXZC5V4ohA

VIDEO: Command out of Sequence Error – How to troubleshoot

Tracer/ST Model 200 Release Notes (DMF 1.68Mb and Mag Index)
Tracer/ST Addendum CopyStream and CopySet
Tracer/ST Service Manual -147 Pages ($40)
Tracer/ST 6000 Owner’s Manual – 176 Pages ($35)
Tracer/ST 223 Owner’s Manual – 156 Pages ($35)
Tracer/ST 8000 Owner’s Manual – 210 Pages ($35)

Trace Quest for Quality Document

Series 2000/3000 (Unix Based Controller for 3.5″ & 5.25″ Loaders)

Series 2000/3000 TPU NVRAM Replacement Instructions
How to Cross Verify Disks between Tracer/ST and a Series 2000/3000

Tracer 5+ Autoloader (PC Controlled 5.25″ Disk Loader)

Tracer 5 Drive Clamping Adjustment Procedure

Tracer 3+ Autoloader (PC Controlled 3.5″ Disk Loader)

Tracer 3+ Loader Cleaning (Prevents or Resolves Loader Jamming)

DL-3000 Diskette Labeler

DL-3000 3.5″ Disk Labeler Service Manual
